Gauges System Description - Overview
The gauge control module has the speedometer, the tachometer, the fuel gauge, the shift position indicator (CVT), and the several indicators. Also, the gauge control module has information display which informs the driver of various vehicle conditions.

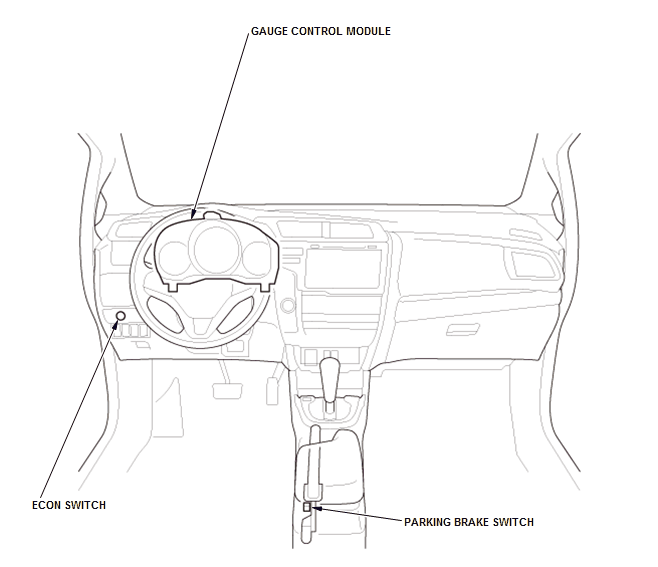

 Courtesy of HONDA, U.S.A., INC.
|

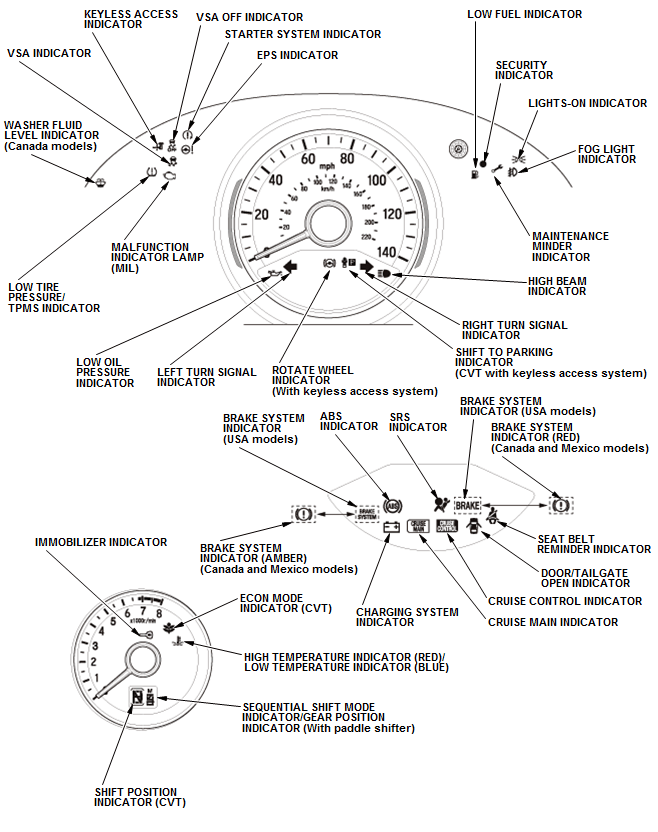

 Courtesy of HONDA, U.S.A., INC.
|

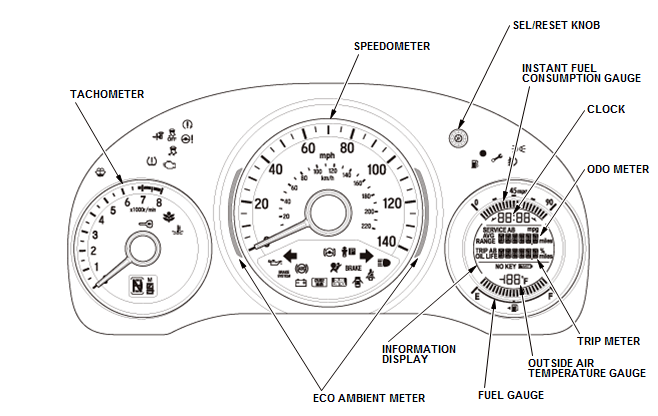

 Courtesy of HONDA, U.S.A., INC.
|

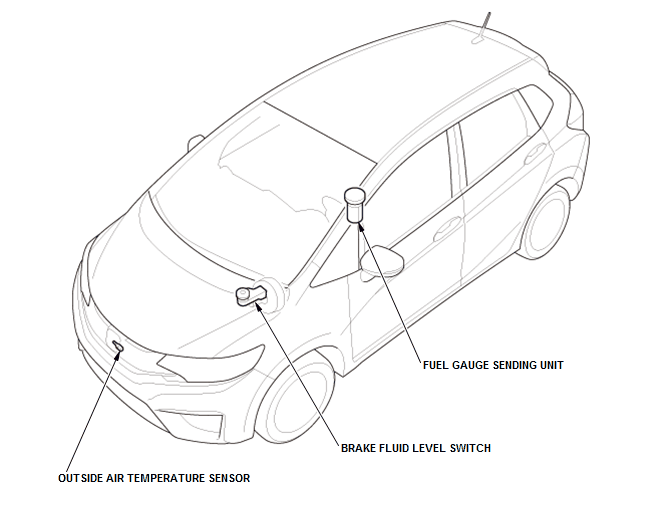

 Courtesy of HONDA, U.S.A., INC.
|
