Home >> Honda >> 2018 >> Fit EX, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Gauges - Testing & Troubleshooting >> Component Location Index >> Gauges Component Location Index

Gauges Component Location Index

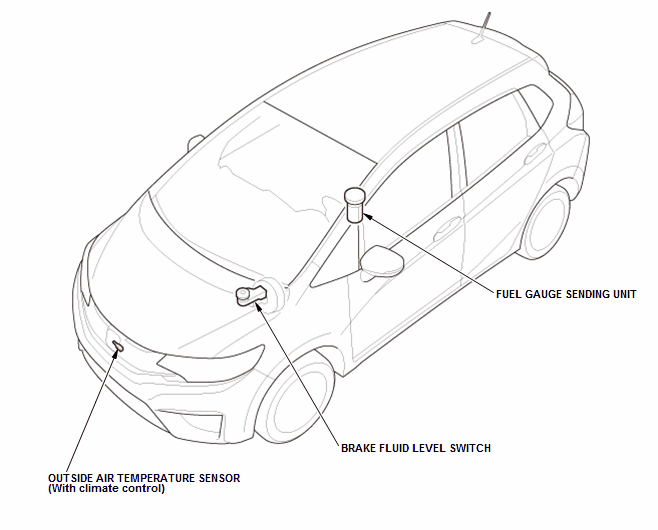

GHH81929Courtesy of HONDA, U.S.A., INC.

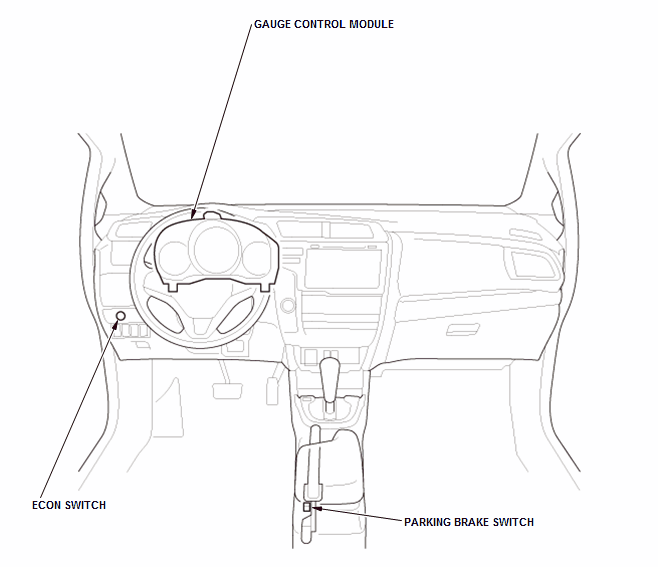

GHH81930Courtesy of HONDA, U.S.A., INC.

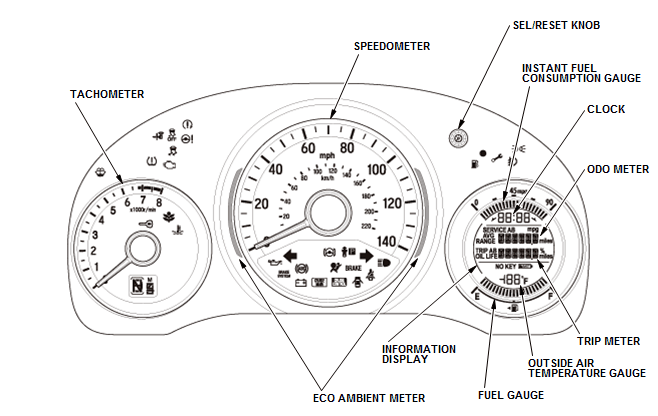

GHH81931Courtesy of HONDA, U.S.A., INC.

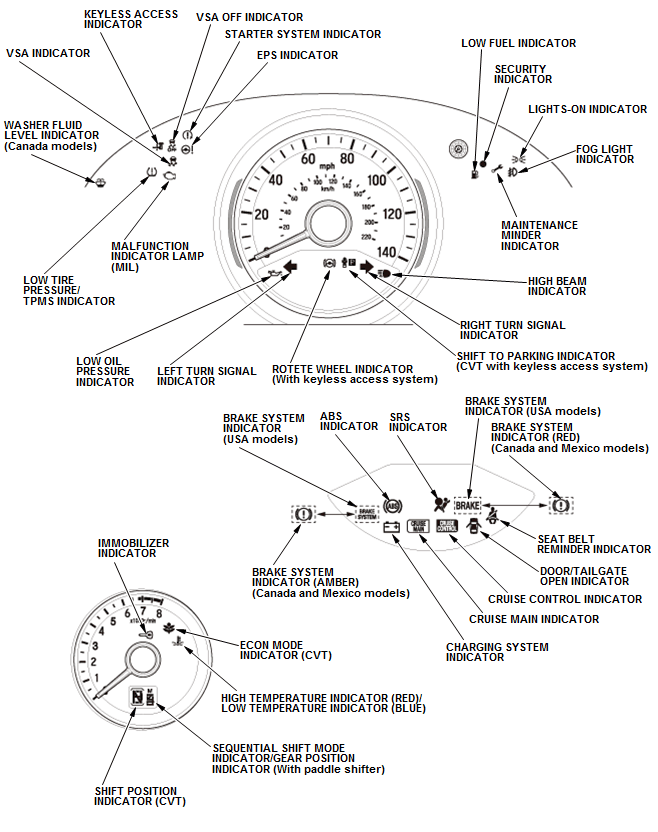

GHH81932Courtesy of HONDA, U.S.A., INC.

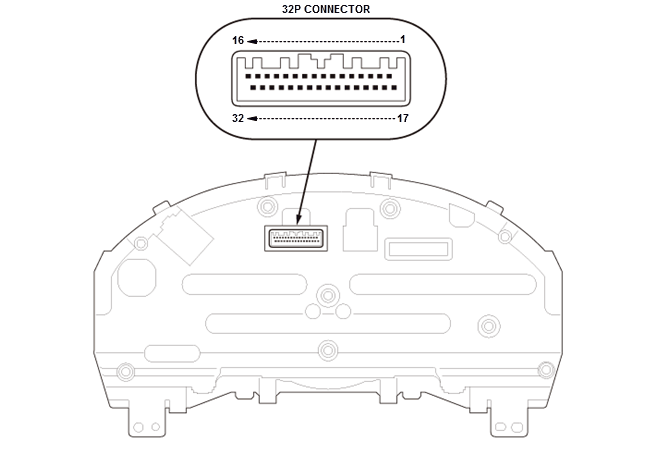

GHH81933Courtesy of HONDA, U.S.A., INC.
