Honda
>>
2018
>>
Fit EX, Standard Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Gauges - Testing & Troubleshooting
>>
Circuit Diagram
>>

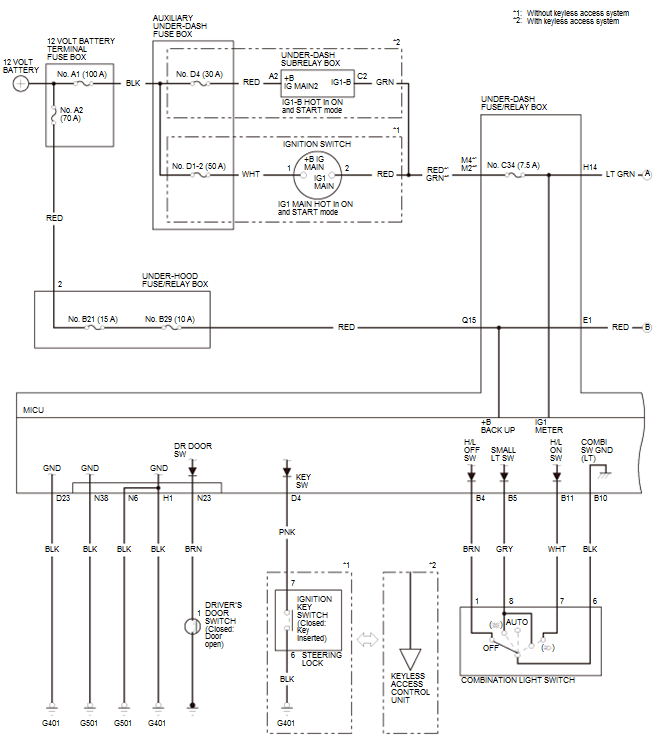

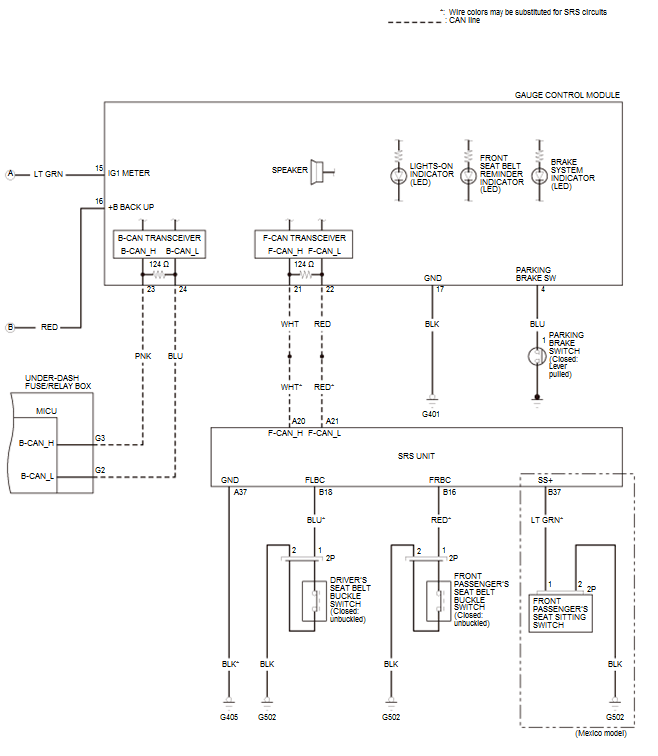

Reminder Systems Circuit Diagram
Reminder Systems Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
