PCU Connector For Inputs And Outputs

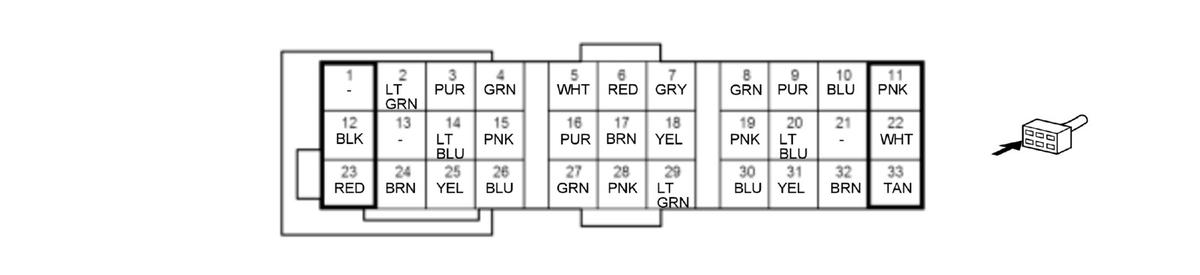

Motor Control Module 33P connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Motor Control Module 33P connector

Terminal number	Terminal name	Description
1	Not used
2	TGEN	Detects generator motor temperature sensor signal
3	S1G	Inputs generator motor rotor position sensor (SIN) signal
4	R1G	Outputs generator motor rotor position sensor excitation signal
5	F-CAN A_H	Sends and receives F-CAN A communication signal (HIGH)
6	F-CAN A_L	Sends and receives F-CAN A communication signal (LOW)
7	NEWP	Detects DT electric water pump revolution speed signal
8	R1M	Outputs traction motor rotor position sensor excitation signal
9	S1M	Inputs traction motor rotor position sensor (SIN) signal
10	TMOT	Detects traction motor temperature sensor signal
11	IGA	Power source for motor control module
12	PG	Power ground
13	Not used
14	S3G	Inputs generator motor rotor position sensor (SIN) signal
15	R2G	Outputs generator motor rotor position sensor excitation signal
16	PCUTW	Detects DT radiator temperature sensor signal
17	SGTEMP	Sensor ground
18	EWP	Drives DT electric water pump
19	R2M	Outputs traction motor rotor position sensor
20	S3M	Inputs generator motor rotor position sensor (SIN) signal
21	Not used
22	VBU	Power source for motor control module (backup)
23	TATF	Detects transmission fluid temperature sensor signal
24	RSLD G	Ground for generator motor rotor position sensor wire
25	S4G	Inputs generator motor rotor position sensor (COS) signal
26	S2G	Inputs generator motor rotor position sensor (COS) signal
27	EPP-CAN A_H	Sends and receives EPP-CAN A communication signal (HIGH)
28	EPP-CAN A_L	Sends and receives EPP-CAN A communication signal (LOW)
29	NGENPLS	Outputs generator motor revolution speed signal
30	S2M	Inputs traction motor rotor position sensor (COS) signal
31	S4M	Inputs traction motor rotor position sensor (COS) signal
32	RSLD M	Ground for traction motor rotor position sensor wire
33	IG HLD PCU EWP	Drives DT electric water pump relay
