Removal and Installation

Intelligent Traction Management Switch - Test

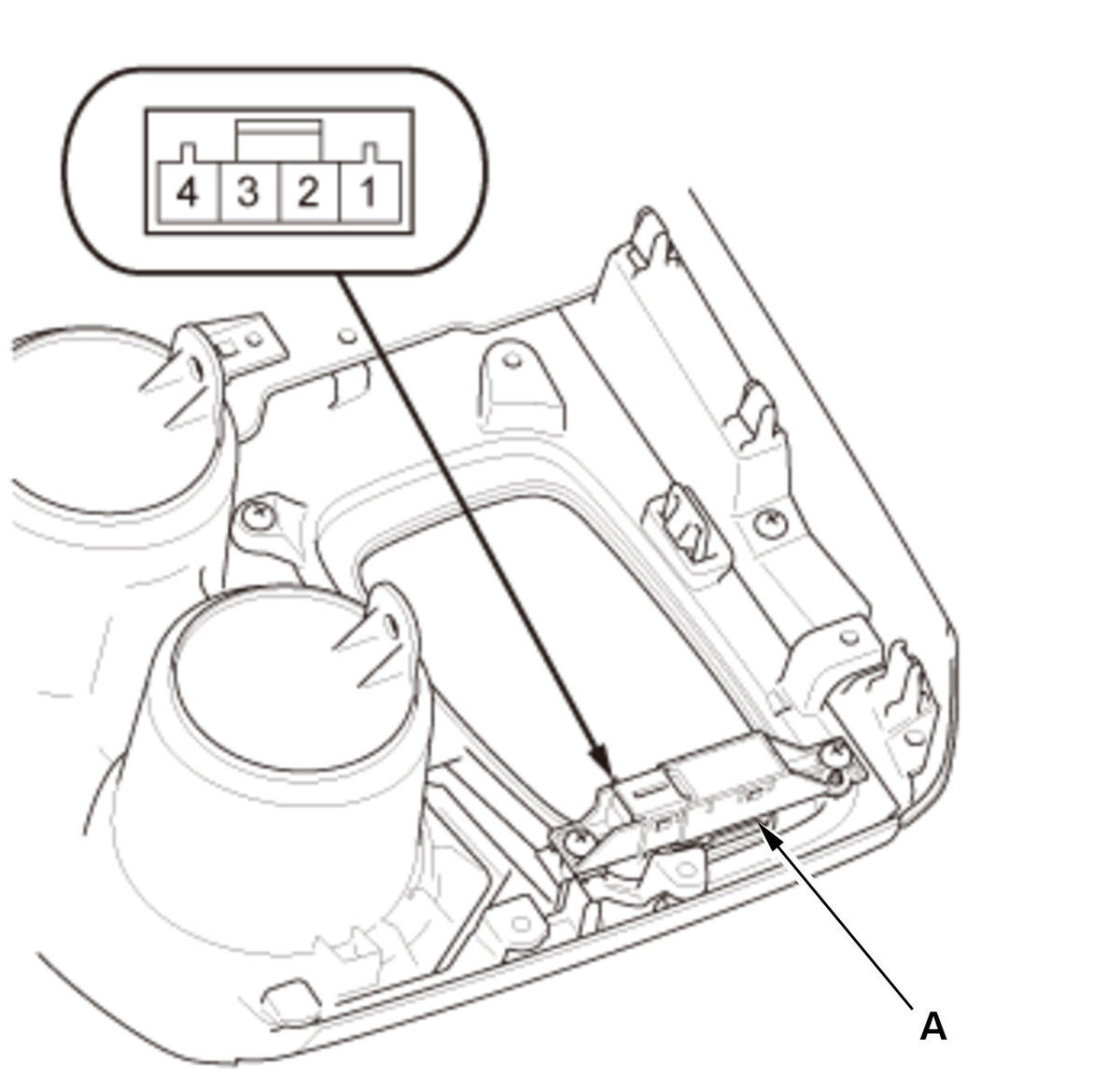

6-speed A/T

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

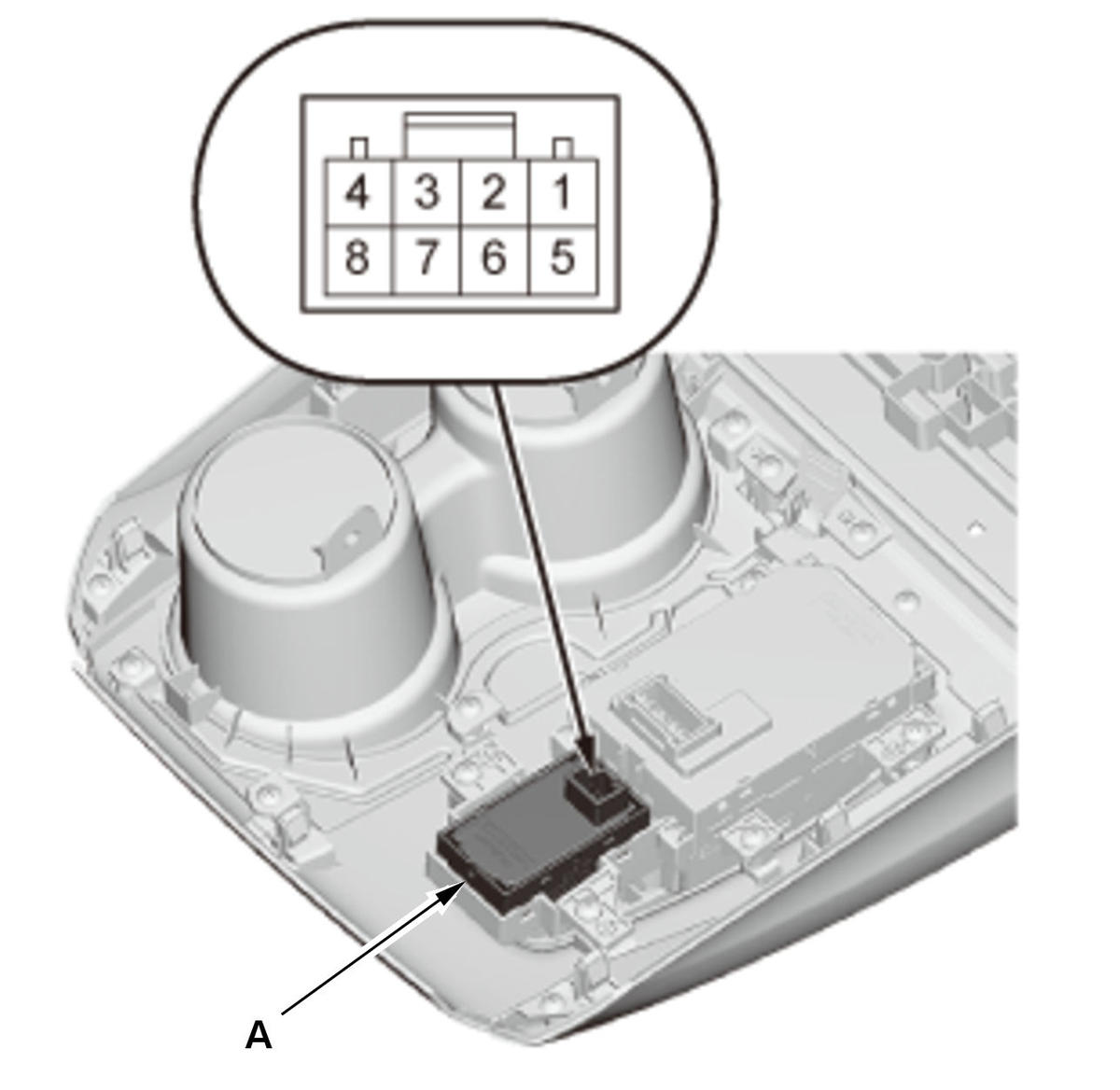

9-speed A/T

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

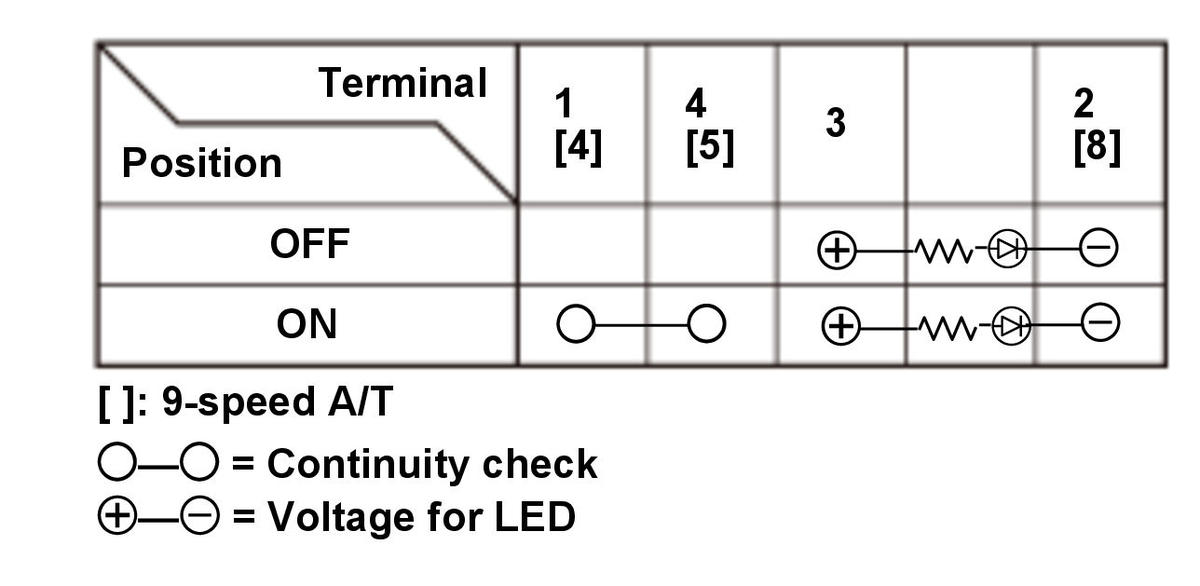

1. Check for continuity between the terminals in each switch position according to the table.

NOTE:

Make sure the correct test lead (+ or -) is placed on the terminal.
When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.
Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
