GAUGES (WITH Auto Idle Stop System) (2019)

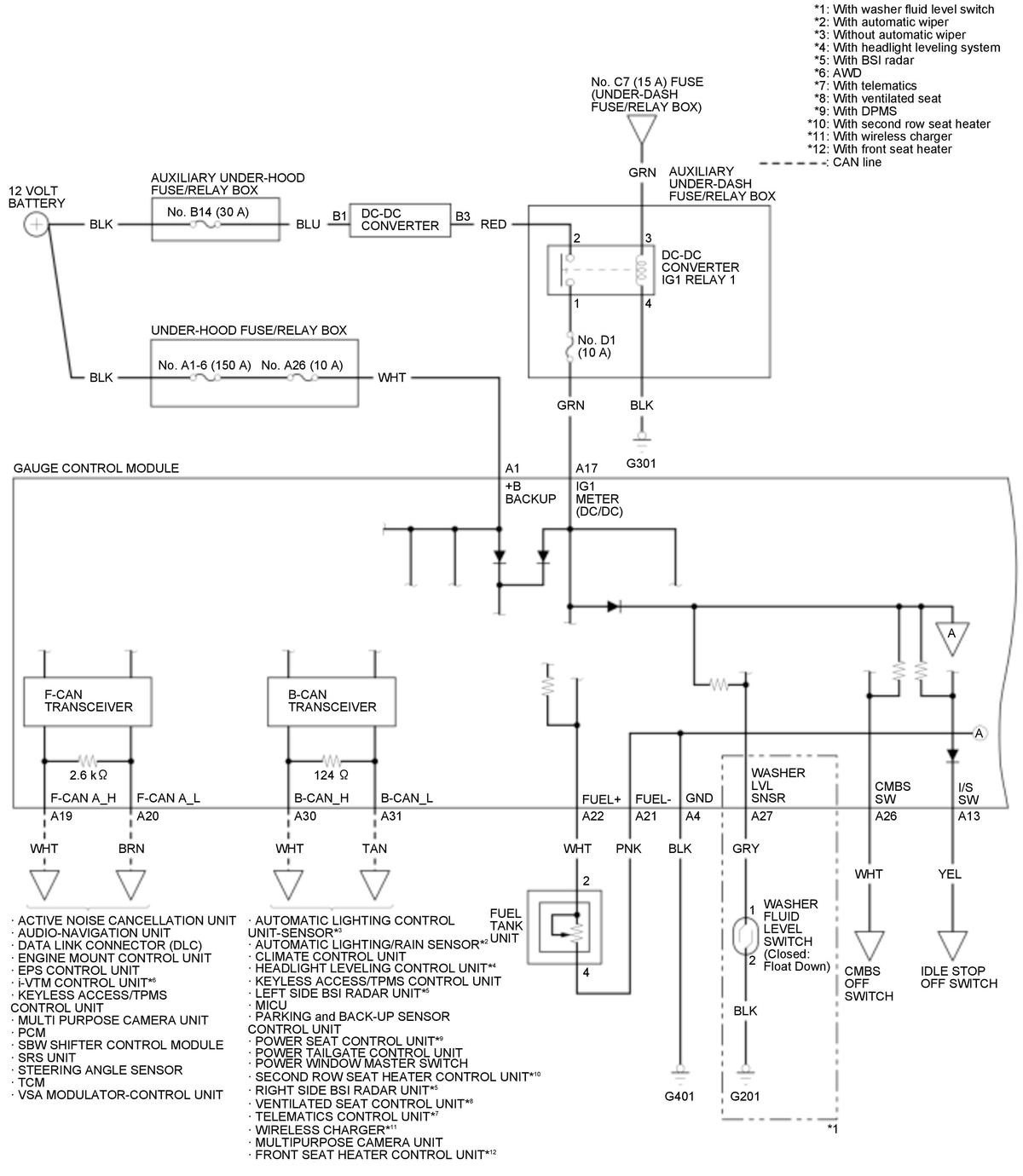

GHH309642

Courtesy of HONDA, U.S.A., INC.

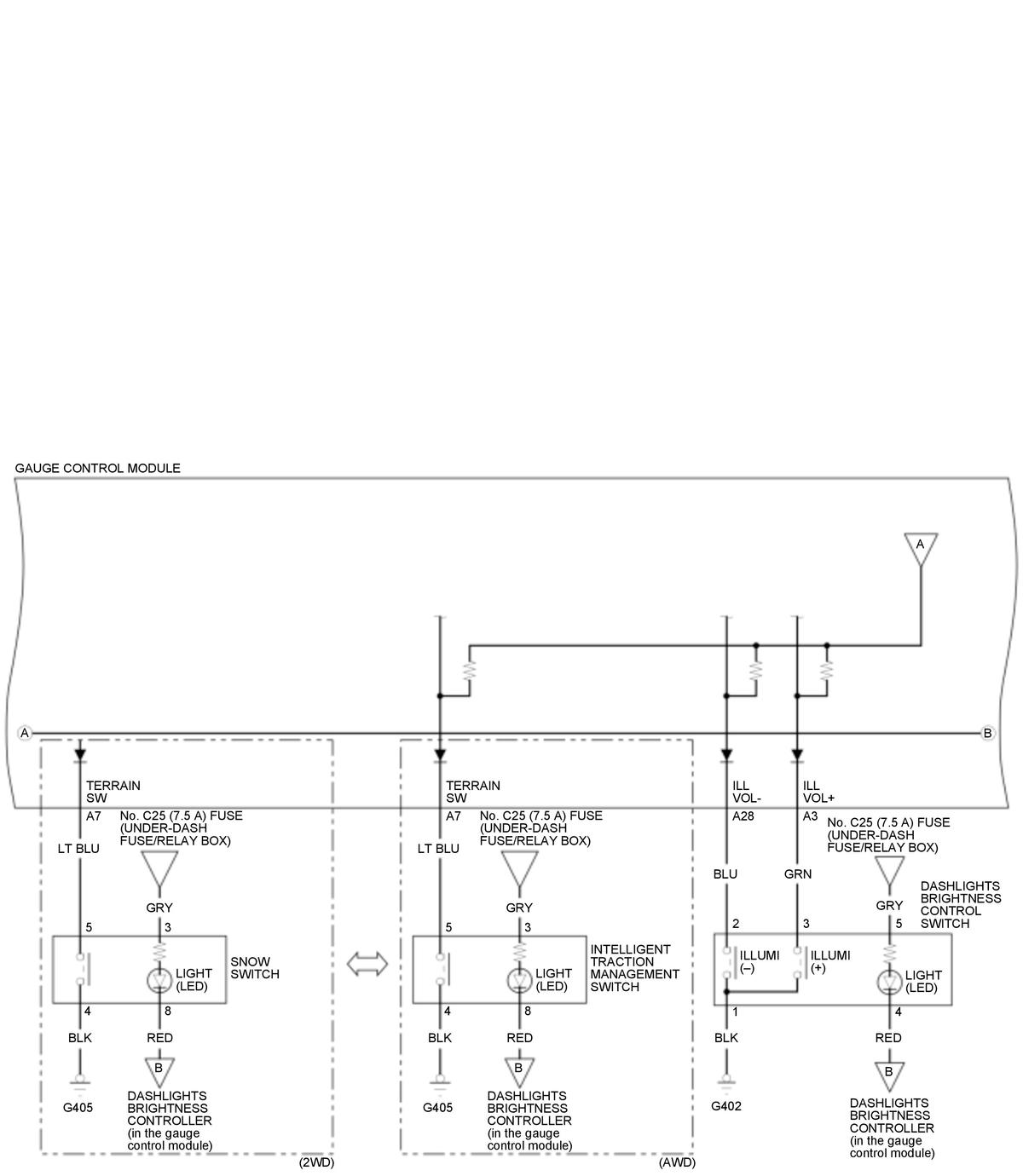

GHH309643

Courtesy of HONDA, U.S.A., INC.

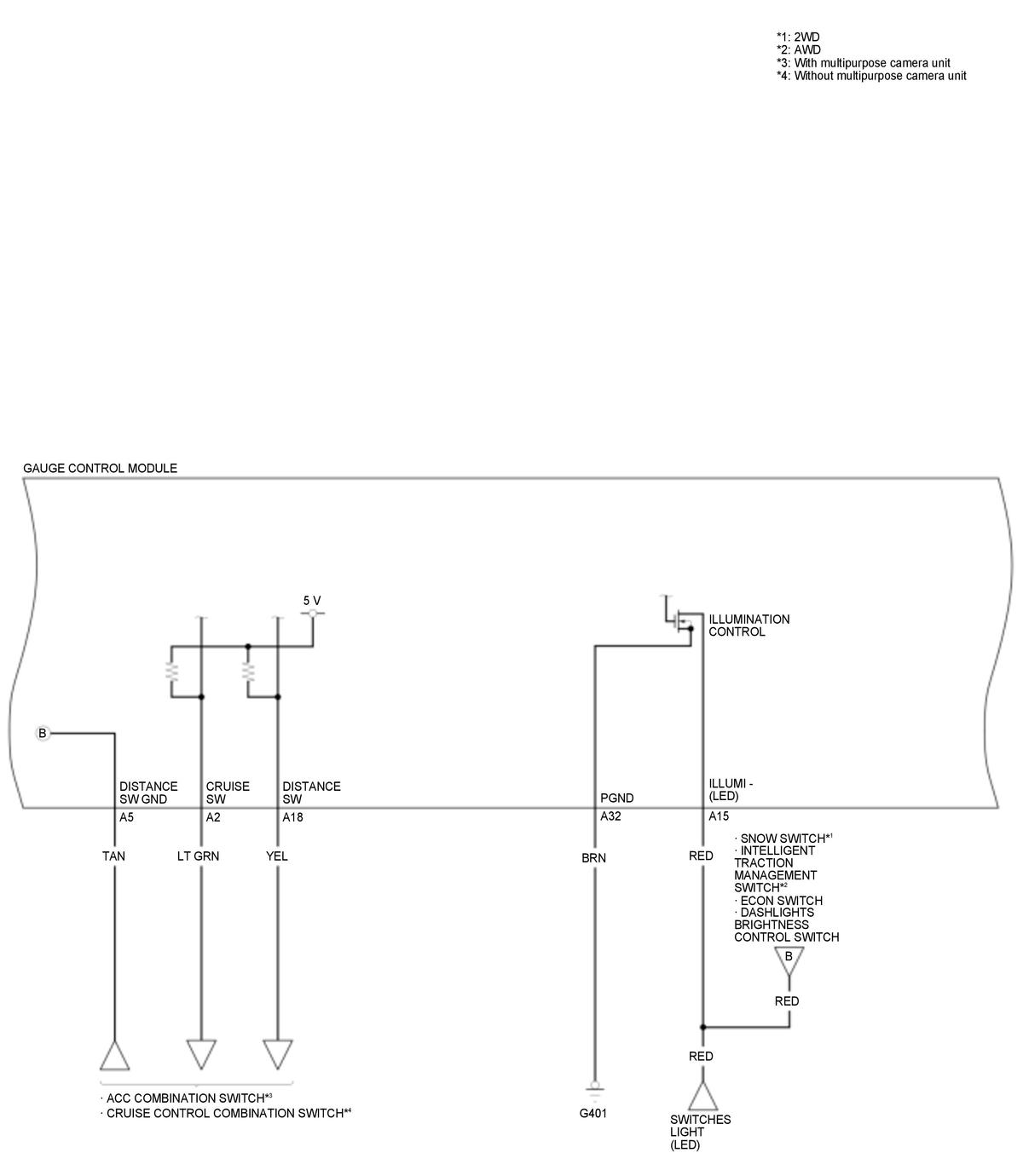

GHH309644

Courtesy of HONDA, U.S.A., INC.

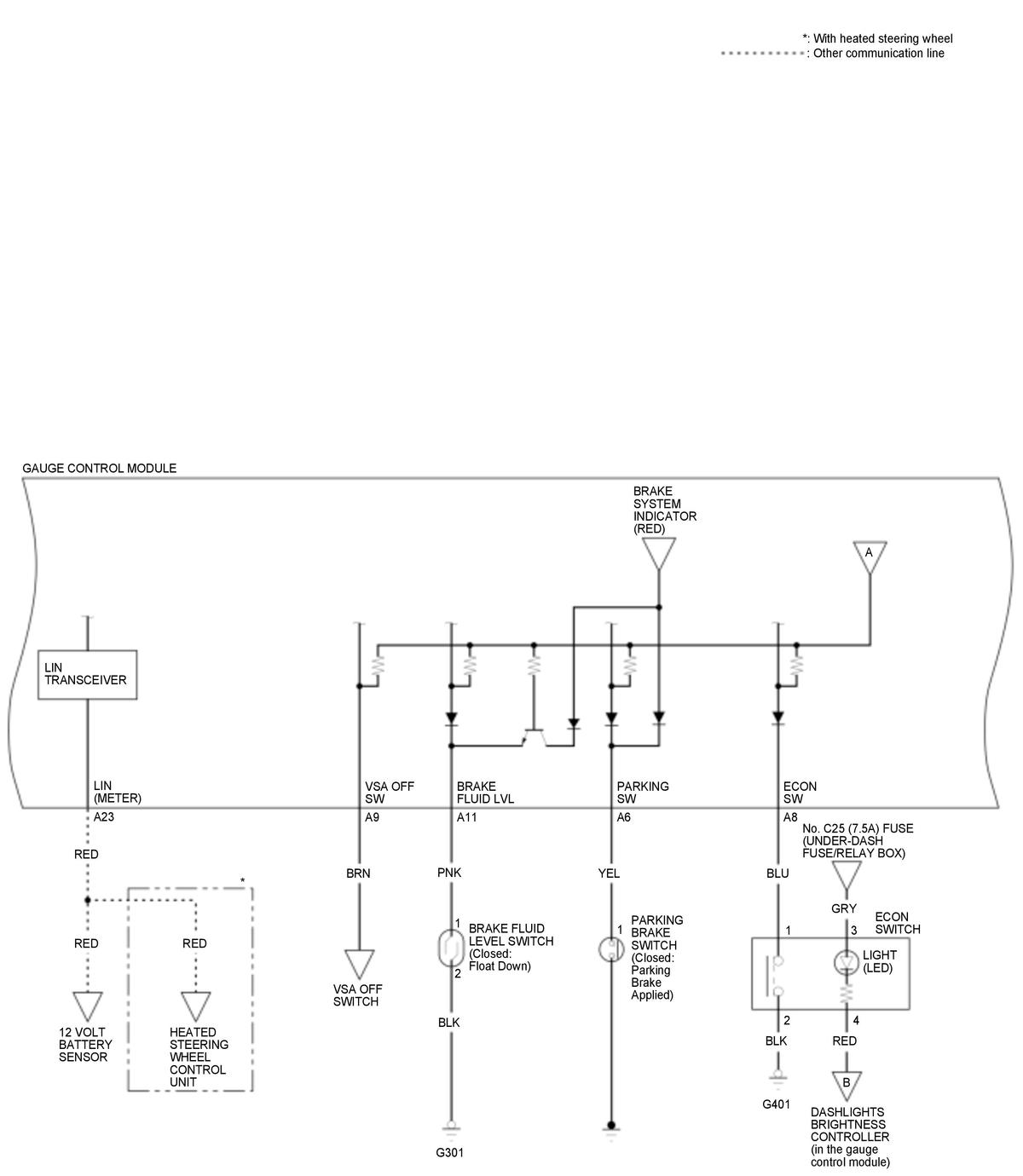

GHH309645

Courtesy of HONDA, U.S.A., INC.

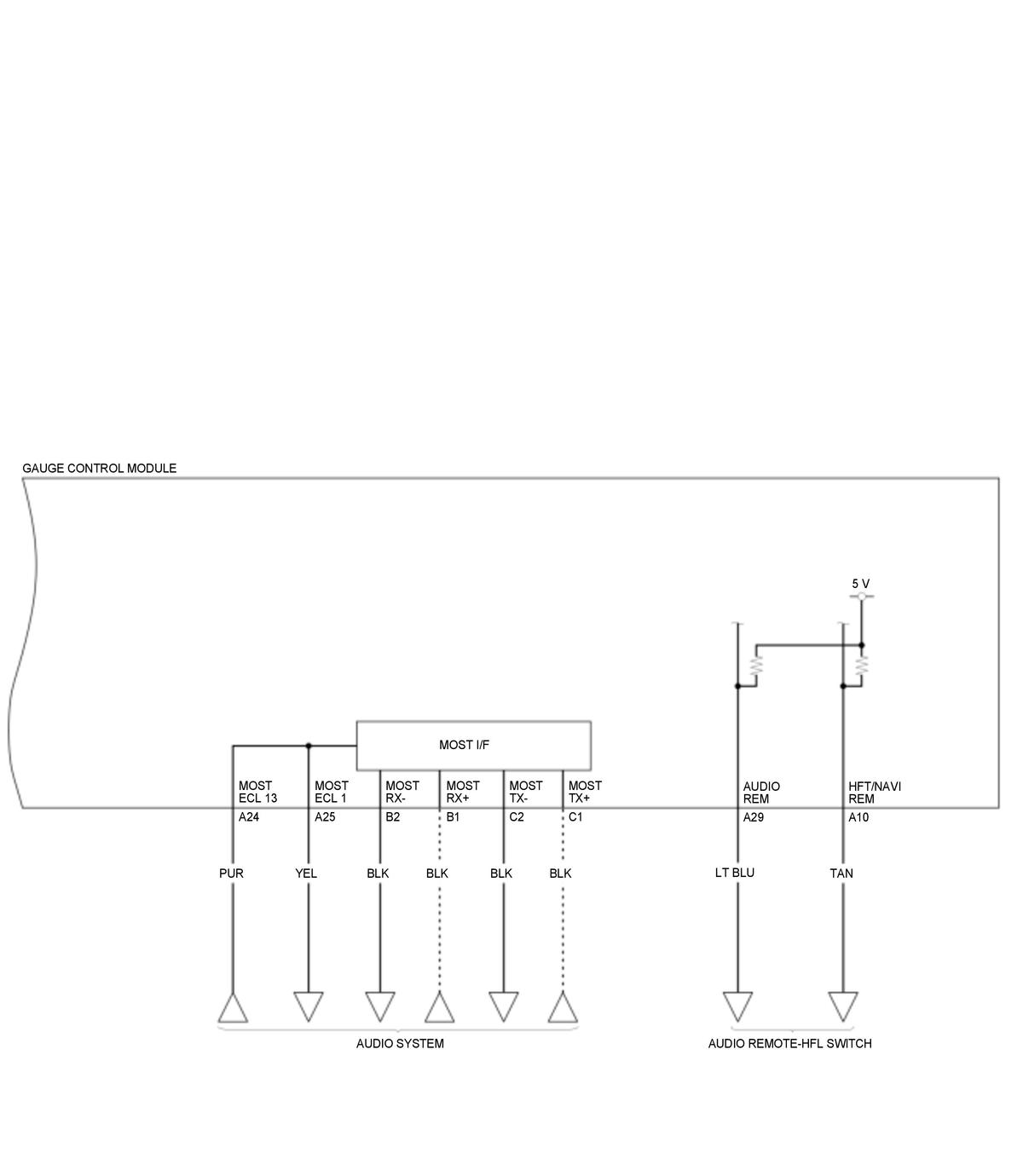

GHH309646

Courtesy of HONDA, U.S.A., INC.
