GAUGES (WITH Auto Idle Stop System) (2016 2017 2018)

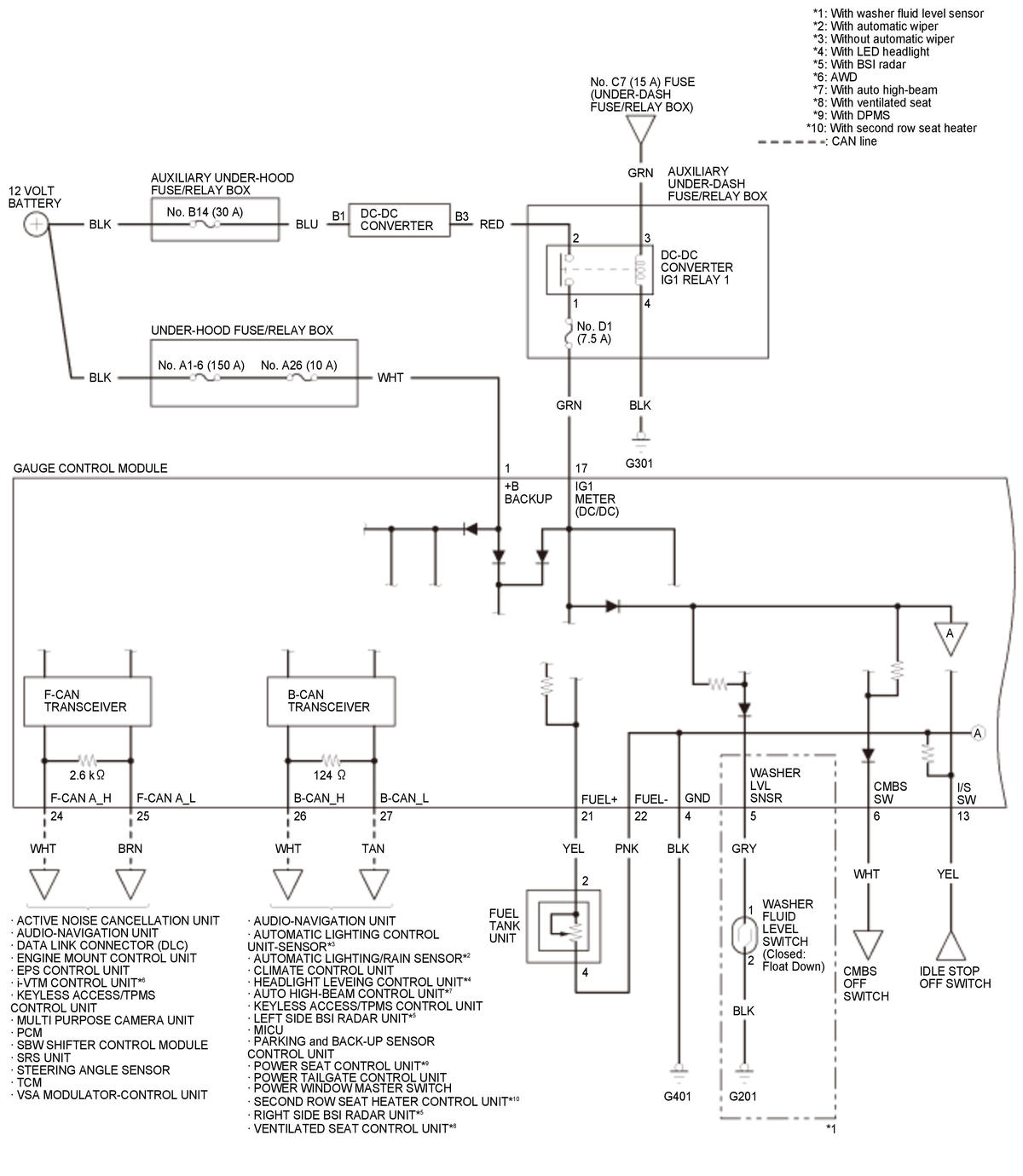

GHH309638

Courtesy of HONDA, U.S.A., INC.

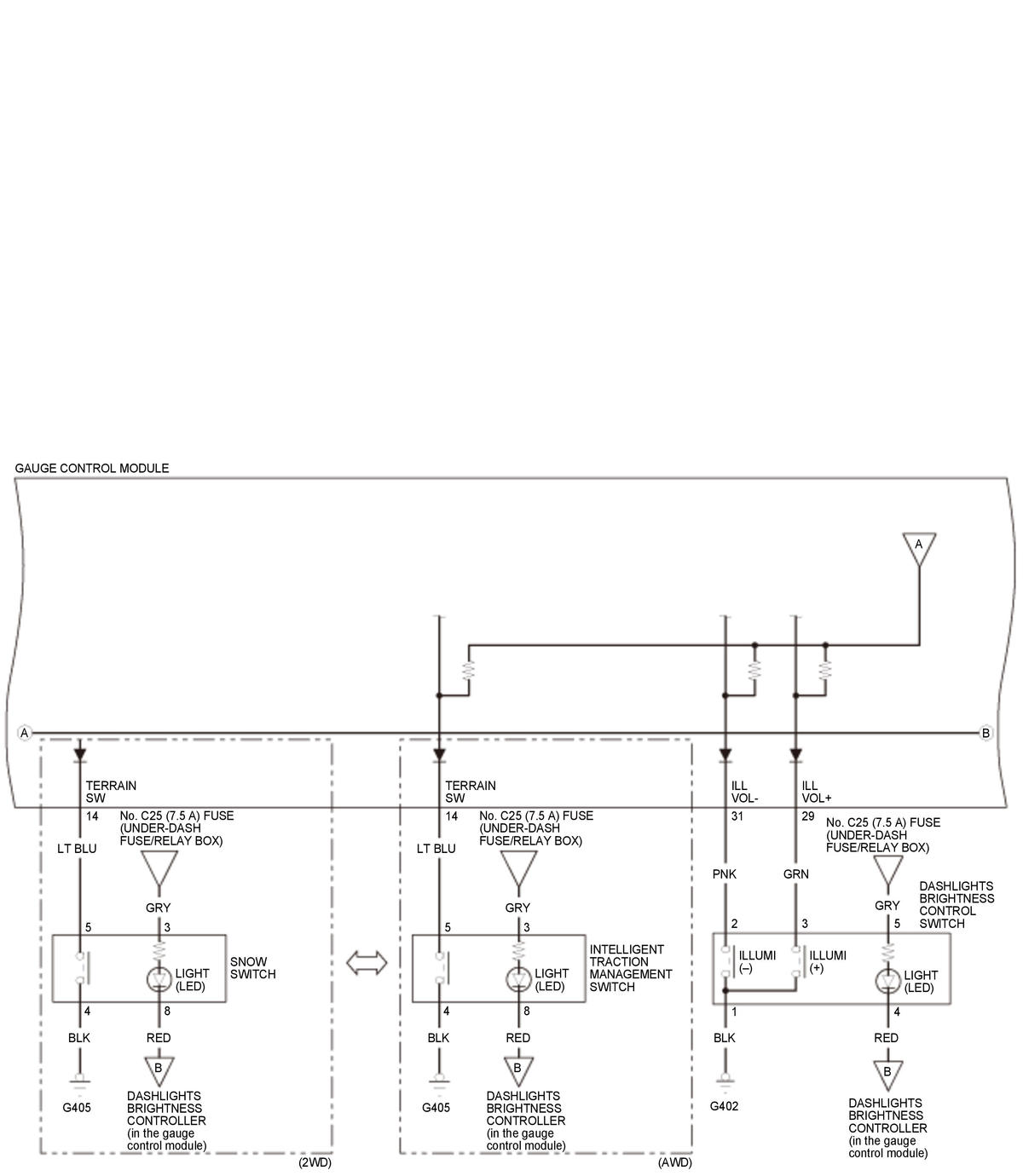

GHH309639

Courtesy of HONDA, U.S.A., INC.

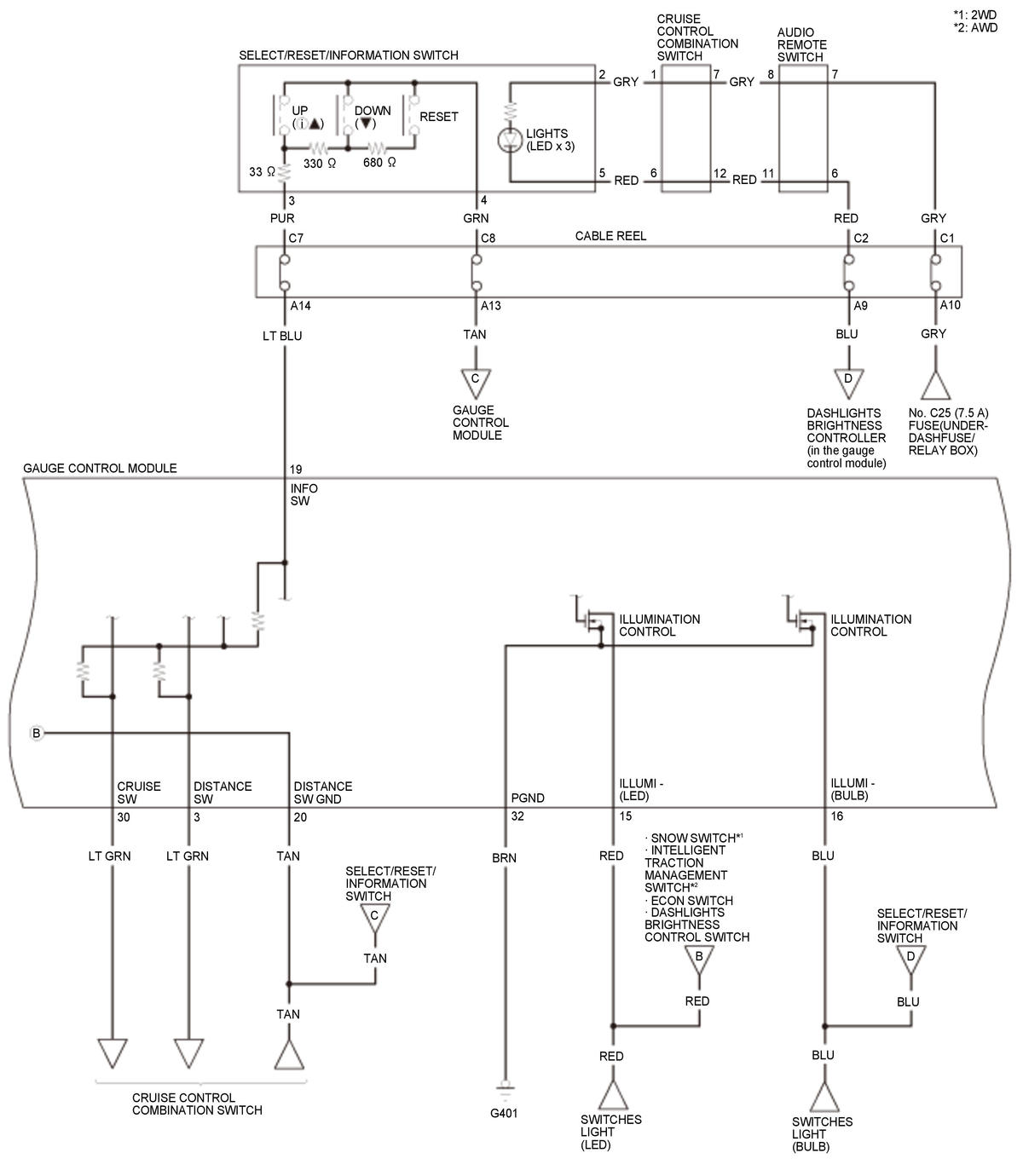

GHH309640

Courtesy of HONDA, U.S.A., INC.

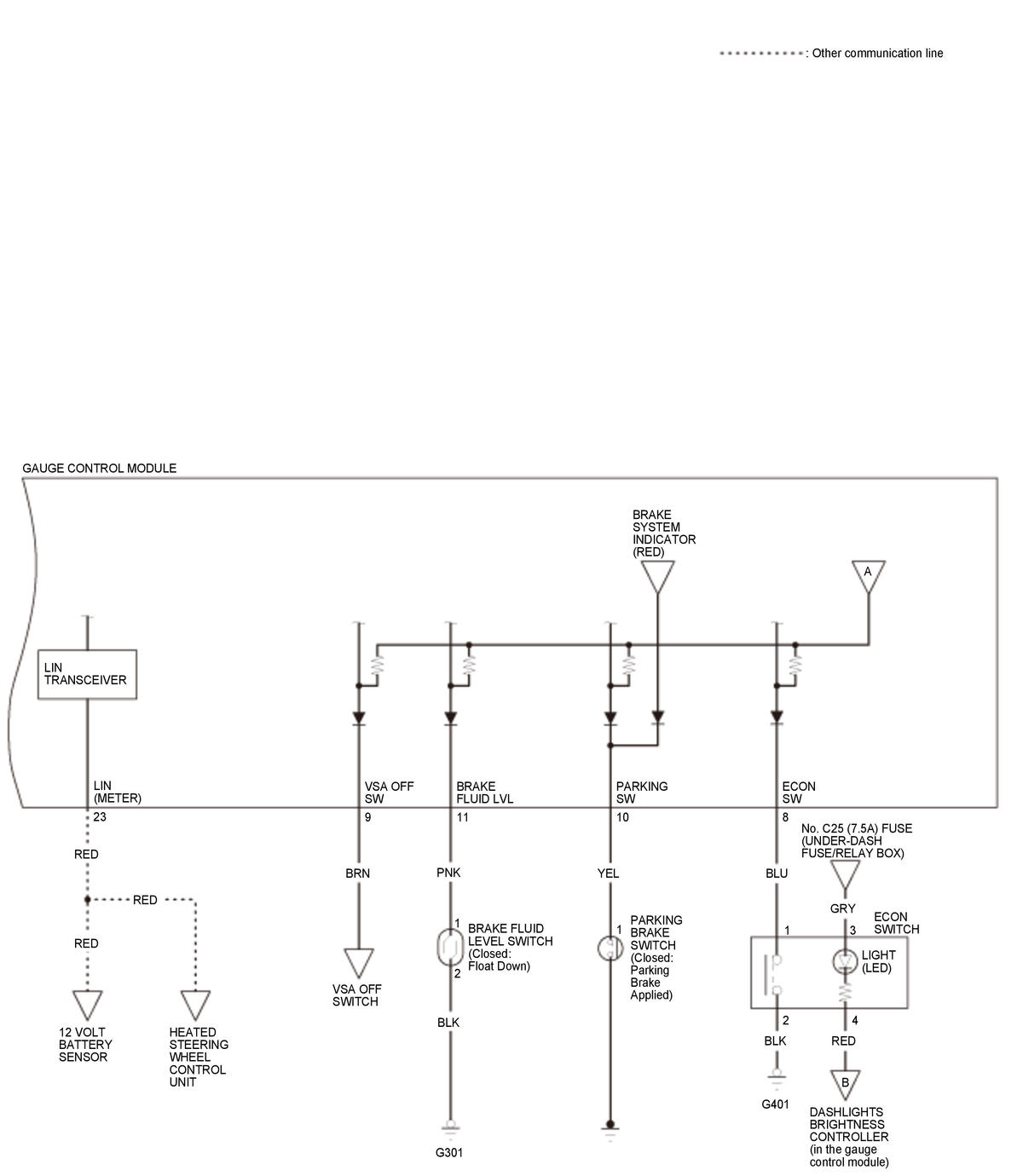

GHH309641

Courtesy of HONDA, U.S.A., INC.
