Unit Connector for Inputs and Outputs (2016)
| Connector Index |
|---|
| SRS unit connector A (39P) |
| SRS unit connector B (39P) |

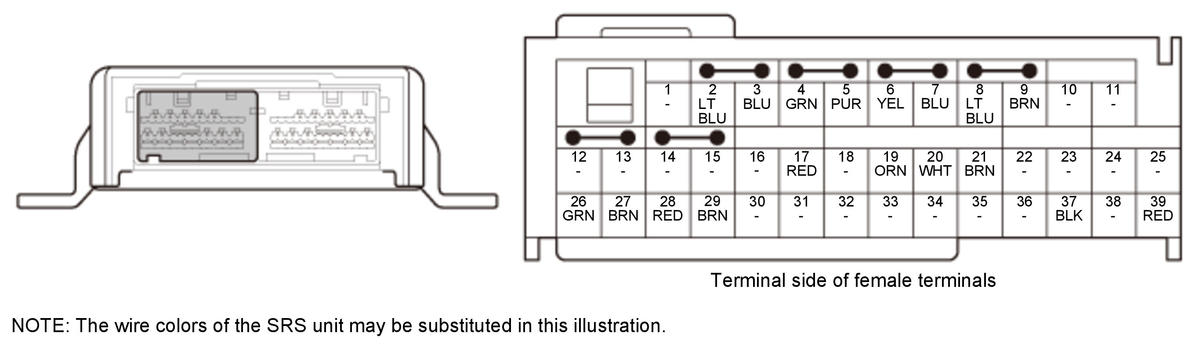

SRS Unit Inputs and Outputs at Connector A (39P)
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | Not Used | ? |
| 2 | RA2? | Power source for the front passenger's airbag second inflator |
| 3 | RA2? | Ground for the front passenger's airbag second inflator |
| 4 | DR INF2? | Power source for the driver's airbag second inflator |
| 5 | DR INF2? | Ground for the driver's airbag second inflator |
| 6 | RA1? | Power source for the front passenger's airbag first inflator |
| 7 | RA1? | Ground for the front passenger's airbag first inflator |
| 8 | DR INF1? | Power source for the driver's airbag first inflator |
| 9 | DR INF1? | Ground for the driver's airbag first inflator |
| 10 | Not Used | ? |
| 11 | Not Used | ? |
| 12 | Not Used | ? |
| 13 | Not Used | ? |
| 14 | Not Used | ? |
| 15 | Not Used | ? |
| 16 | Not Used | ? |
| 17 | SRS OFF | Sends and receives communication signal with the front passenger's airbag cutoff indicator |
| 18 | Not Used | ? |
| 19 | L-LINE | Additional communication line |
| 20 | F-CAN A_H* 1 | Sends and receives communication signal |
| F-CAN_H* 2 | ||
| 21 | F-CAN A_L* 1 | Sends and receives communication signal |
| F-CAN_L* 2 | ||
| 22 | Not Used | ? |
| 23 | Not Used | ? |
| 24 | Not Used | ? |
| 25 | Not Used | ? |
*1: 9-speed A/T
*2: 6-speed A/T
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 26 | RFS? | Power source for the right front impact sensor |
| 27 | RFS? | Ground for the right front impact sensor |
| 28 | LFS? | Power source for the left front impact sensor |
| 29 | LFS? | Ground for the left front impact sensor |
| 30 | Not Used | ? |
| 31 | Not Used | ? |
| 32 | Not Used | ? |
| 33 | Not Used | ? |
| 34 | Not Used | ? |
| 35 | Not Used | ? |
| 36 | Not Used | ? |
| 37 | SGND | Ground circuit for the SRS unit |
| 38 | Not Used | ? |
| 39 | VB | SRS dedicated power (dedicated booster circuit) |
*1: 9-speed A/T
*2: 6-speed A/T

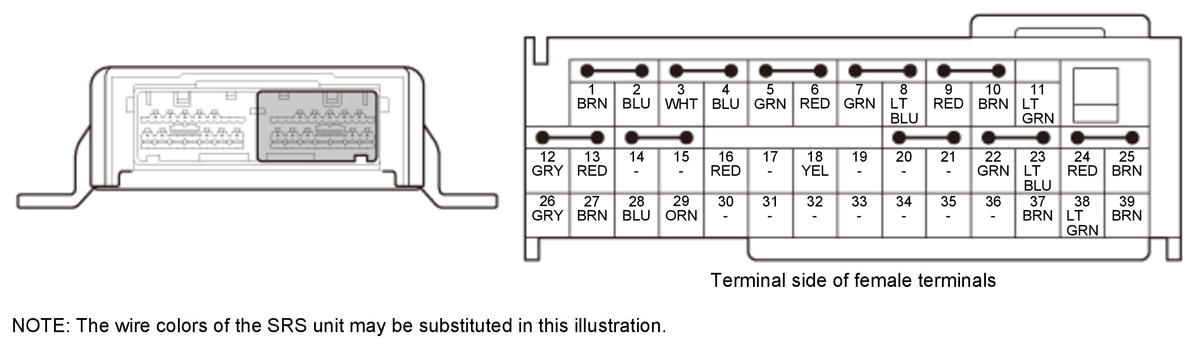

SRS Unit Inputs and Outputs at Connector B (39P)
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | LCA1? | Power source for the left side curtain airbag first inflator |
| 2 | LCA1? | Ground for the left side curtain airbag first inflator |
| 3 | RSA? | Power source for the front passenger's side airbag inflator |
| 4 | RSA? | Ground for the front passenger's side airbag inflator |
| 5 | LSA? | Power source for the driver's side airbag inflator |
| 6 | LSA? | Ground for the driver's side airbag inflator |
| 7 | RLP? | Power source for the front passenger's seat belt outer lap tensioner |
| 8 | RLP? | Ground for the front passenger's seat belt outer lap tensioner |
| 9 | LLP? | Power source for the driver's seat belt outer lap tensioner |
| 10 | LLP? | Ground for the driver's seat belt outer lap tensioner |
| 11 | OPDS | Sends and receives communication signal with the front passenger's weight sensor unit |
| 12 | RCA1? | Power source for the right side curtain airbag first inflator |
| 13 | RCA1? | Ground for the right side curtain airbag first inflator |
| 14 | Not Used | ? |
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 15 | Not Used | ? |
| 16 | FRBC | Front passenger's seat belt buckle switch input line |
| 17 | Not Used | ? |
| 18 | FLBC | Driver's seat belt buckle switch input line |
| 19 | Not Used | ? |
| 20 | Not Used | ? |
| 21 | Not Used | ? |
| 22 | RRP? | Power source for the front passenger's seat belt tensioner |
| 23 | RRP? | Ground for the front passenger's seat belt tensioner |
| 24 | LRP? | Power source for the driver's seat belt tensioner |
| 25 | LRP? | Ground for the driver's seat belt tensioner |
| 26 | RSI1? | Power source for the right side impact sensor (first), right side impact sensor (second) |
| 27 | RSI1? | Ground for the right side impact sensor (first), right side impact sensor (second) |
| 28 | LSI1? | Power source for the left side impact sensor (first), left side impact sensor (second) |
| 29 | LSI1? | Ground for the left side impact sensor (first), left side impact sensor (second) |
| 30 | Not Used | ? |
| 31 | Not Used | ? |
| 32 | Not Used | ? |
| 33 | Not Used | ? |
| 34 | Not Used | ? |
| 35 | Not Used | ? |
| 36 | Not Used | ? |
| 37 | SPS? | Driver's seat position sensor input line |
| 38 | SSS+ | Power source for the rear safing sensor |
| 39 | SSS- | Ground for the rear safing sensor |
