DTC P2720 (16-20 6-Speed A/T)

DTC P2720  : A/T Clutch Pressure Control Solenoid Valve D Low Input

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information - Refer to: How to Troubleshoot the A/T System .
• This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
• If DTC P2720 is stored in the PCM, the transmission does not shift to 2nd or 5th gear because of the fail-safe function.

DTC (A/T)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P2720 A/T Clutch Pressure Control Solenoid Valve D Low Input

   Is DTC P2720 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between A/T clutch pressure control solenoid valve D and the PCM.

   If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Fuse check

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Check the following fuse.

   Fuse	No. C31 (7.5 A)
   Location	Under-dash fuse/relay box

   Is the fuse OK?

   YES

   The fuse is OK. Go to step 3.

   NO

   Replace the No. C31 (7.5 A) fuse, and recheck. If the fuse blows again, repair a short to ground on the No. C31 (7.5 A) fuse circuit, and recheck.

3. Open wire check (IG1 VB SOL line)

   - 1. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 2. Disconnect the following connector.

   PCM connector A (51P)

   - 3. Turn the vehicle to the ON mode.

   - 4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	PCM connector A (51P): disconnected
   Test point 1	PCM connector A (51P) No. 1 - Refer to: PCM Connector for Inputs and Outputs (6-Speed A/T).
   Test point 2	Body ground

   Is there battery voltage?

   YES

   The IG1 VB SOL wire is OK. Go to step 4.

   NO

   Repair an open in the IG1 VB SOL wire between the PCM and the No. C31 (7.5 A) fuse in the under-dash fuse/relay box.

4. Determine possible failure area (short in LSD line, others)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Reconnect PCM connector A (51P).

   - 3. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 4. Disconnect the following connector.

   PCM connector B (51P)

   - 5. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector B (51P): disconnected
   Test point 1	PCM connector B (51P) No. 9 - Refer to: PCM Connector for Inputs and Outputs (6-Speed A/T)
   Test point 2	Body ground

   Is there continuity?

   YES

   Go to step 5.

   NO

   Go to step 6.

5. Shorted wire check (LSD line)

   - 1. Disconnect the following connector.

   A/T clutch pressure control solenoid valve D 2P connector

   - 2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/T clutch pressure control solenoid valve D 2P connector: disconnected
   	PCM connector B (51P): disconnected

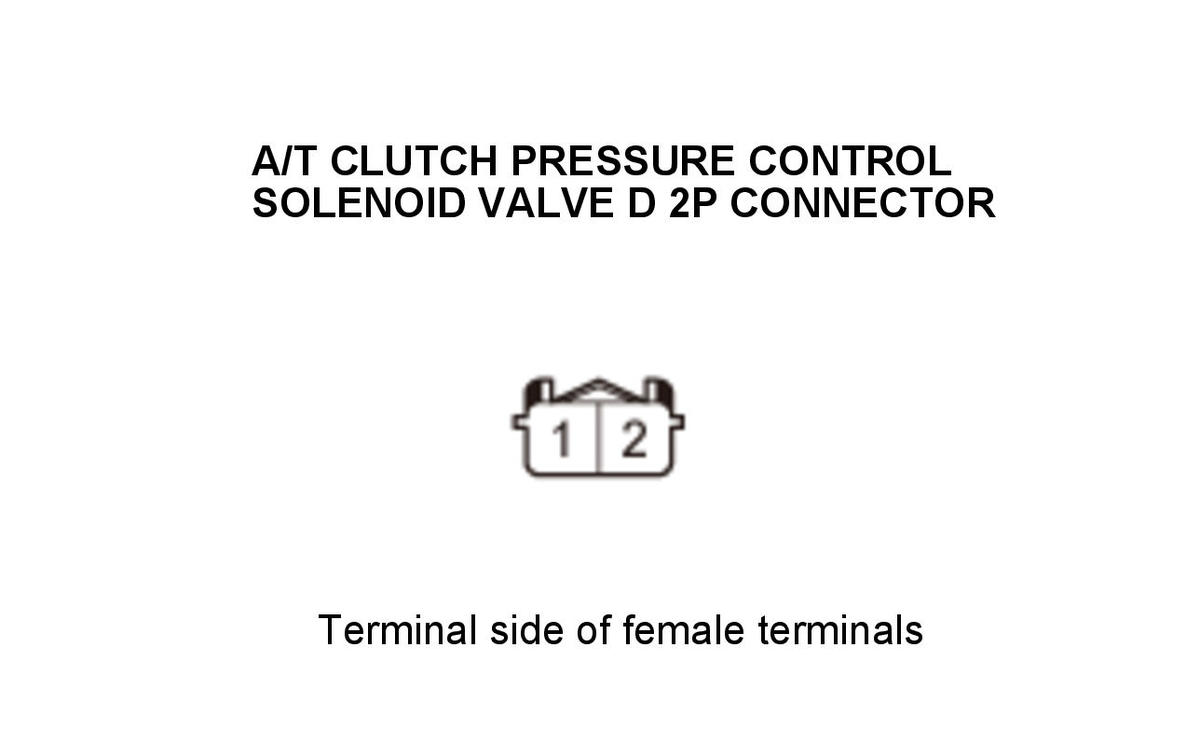

   Test point 1	A/T clutch pressure control solenoid valve D 2P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the LSD wire between A/T clutch pressure control solenoid valve D and the PCM.

   NO

   The LSD wire is OK. Faulty A/T clutch pressure control solenoid valve D. Replace the secondary valve body (A/T clutch pressure control solenoid valve D) .

6. Open wire check (LSD line)

   - 1. Disconnect the following connector.

   A/T clutch pressure control solenoid valve D 2P connector

   - 2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/T clutch pressure control solenoid valve D 2P connector: disconnected
   	PCM connector B (51P): disconnected

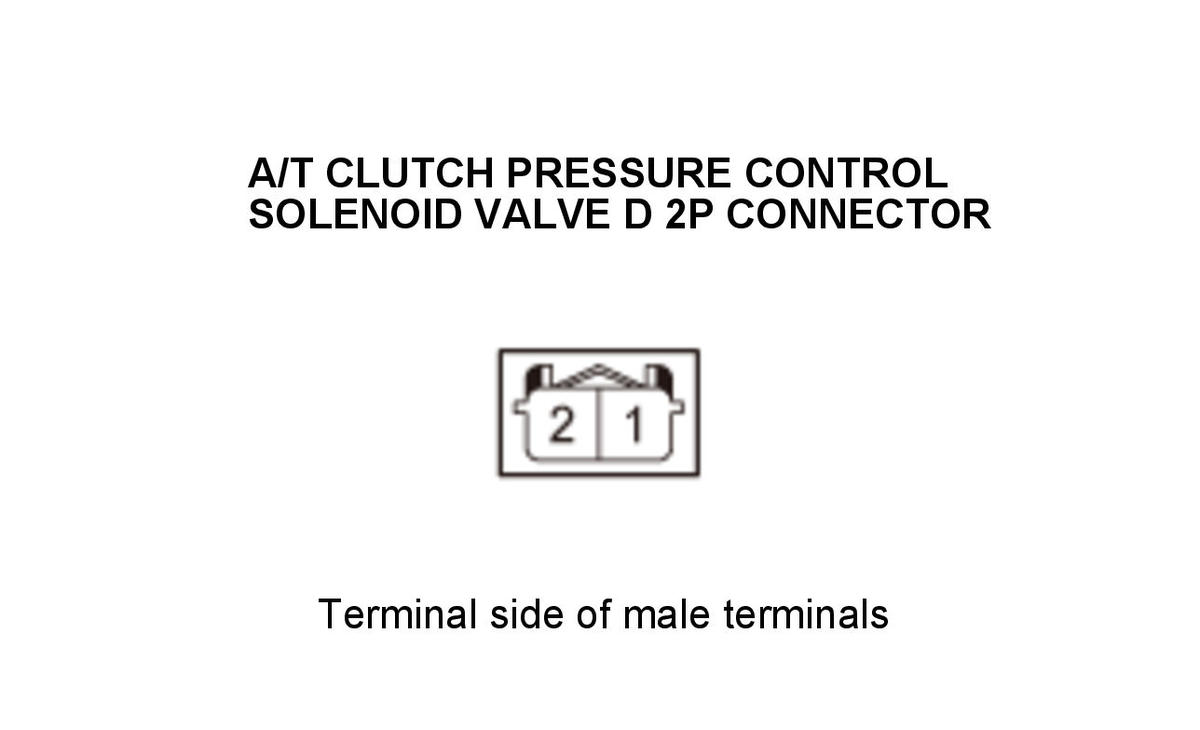

   Test point 1	A/T clutch pressure control solenoid valve D 2P connector No. 2
   Test point 2	PCM connector B (51P) No. 9 - Refer to: PCM Connector for Inputs and Outputs (6-Speed A/T).

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LSD wire is OK. Go to step 7.

   NO

   Repair an open in the LSD wire between A/T clutch pressure control solenoid valve D and the PCM.

7. Open wire check (LSD PG line)

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/T clutch pressure control solenoid valve D 2P connector: disconnected
   	PCM connector B (51P): disconnected
   Test point 1	A/T clutch pressure control solenoid valve D 2P connector No. 1
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LSD PG wire is OK. Go to step 8.

   NO

   Repair an open in the LSD PG wire between A/T clutch pressure control solenoid valve D and ground (G101) or repair poor ground (G101).

8. A/T clutch pressure control solenoid valve D check

   - 1. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/T clutch pressure control solenoid valve D 2P connector: disconnected
   	PCM connector B (51P): disconnected
   Test point 1	A/T clutch pressure control solenoid valve D 2P connector No. 1
   Test point 2	A/T clutch pressure control solenoid valve D 2P connector No. 2

   Courtesy of HONDA, U.S.A., INC.

   Is there 4.7-5.9 Ω?

   YES

   A/T clutch pressure control solenoid valve D is OK. Replace the PCM - Refer to: PCM Removal and Installation (6-Speed A/T), ('16-'18 9-Speed A/T) .

   NO

   Faulty A/T clutch pressure control solenoid valve D. Replace the secondary valve body (A/T clutch pressure control solenoid valve D) .
