DTC P16E2 (19-21 9-Speed A/T)

DTC P16E2  : PGM-FI-ACG LIN Communication Error

NOTE:

• Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems .
• If the vehicle has an AGM type 12 volt battery, do the 12 volt battery test after this troubleshooting procedure to check the 12 volt battery performance. - Refer to:
• 12 Volt Battery Test (Without Auto Idle Stop System), or 12 Volt Battery Test (With Auto Idle Stop System) .
• Check for a loose terminal on the alternator (+B terminal). If the alternator +B terminal was loose, DTC P16E2 will be stored.

DTC (PGM-FI)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Turn the vehicle to the OFF (LOCK) mode.

   - 4. Turn the vehicle to the ON mode, and wait 10 seconds.

   - 5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E2 PGM-FI-ACG LIN Communication Error

   Is DTC P16E2 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the alternator and the PCM.

   If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

2. DTC check

   - 1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E5 PGM-FI-DC-DC Converter LIN Communication Error

   Is DTC P16E5 indicated?

   YES

   Go to step 3.

   NO

   Go to step 7.

3. Determine possible failure area (LIN/LIN (ACG) line shorted, others)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Alternator 1P connector

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected

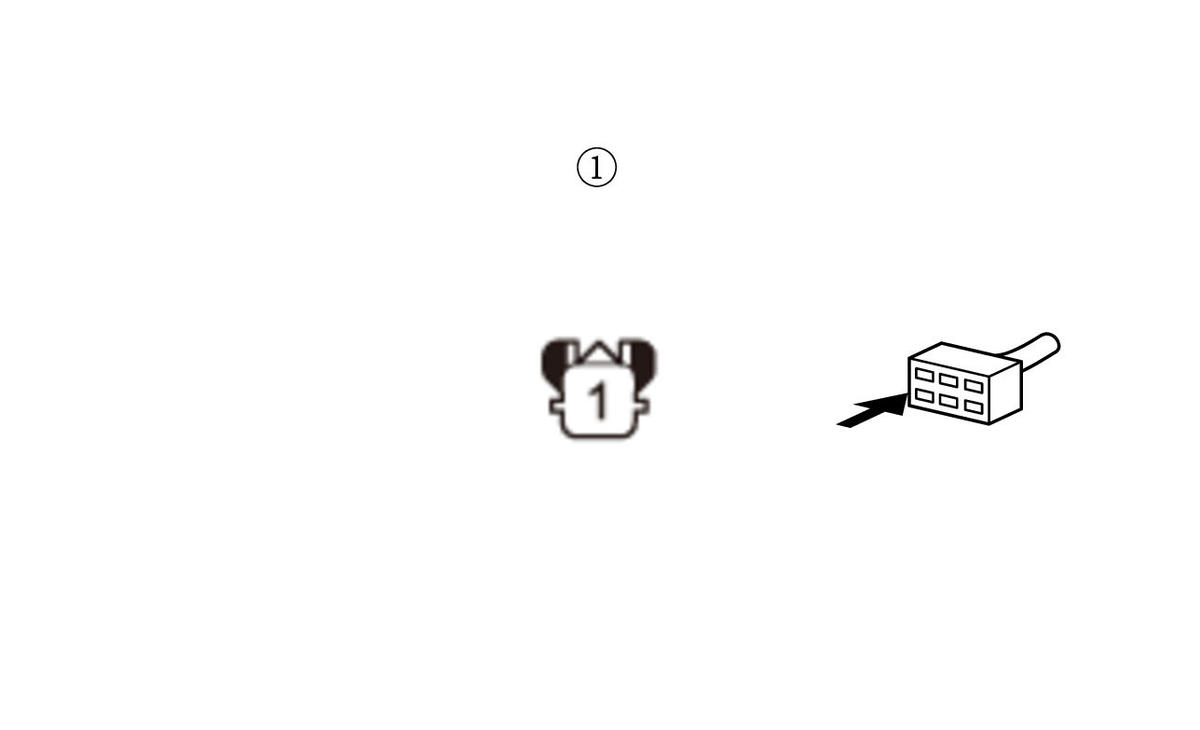

   Test point 1	Alternator 1P connector (female terminal) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 4.

   NO

   Go to step 5.

4. Shorted wire check (LIN/LIN (ACG) line)

   - 1. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 2. Continue to check for continuity between the alternator 1P connector terminal and body ground, while disconnecting these connectors, one at a time:

   • PCM connector A (50P)
   • 12 volt battery fan motor 3P connector
   • DC-DC converter connector A (3P)

   Does continuity go away when one of the above connectors is disconnected?

   YES

   The LIN/LIN (ACG) wire is OK. Replace the part that caused an open when it was disconnected.

   NO

   Repair a short in the LIN/LIN (ACG) wire between the PCM (A24), the alternator, the 12 volt battery fan motor, and the DC-DC converter.

5. Determine possible failure area (alternator, others)

   - 1. Reconnect the alternator 1P connector.

   - 2. Disconnect the following connector.

   DC-DC converter connector A (3P)

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	DC-DC converter connector A (3P): disconnected

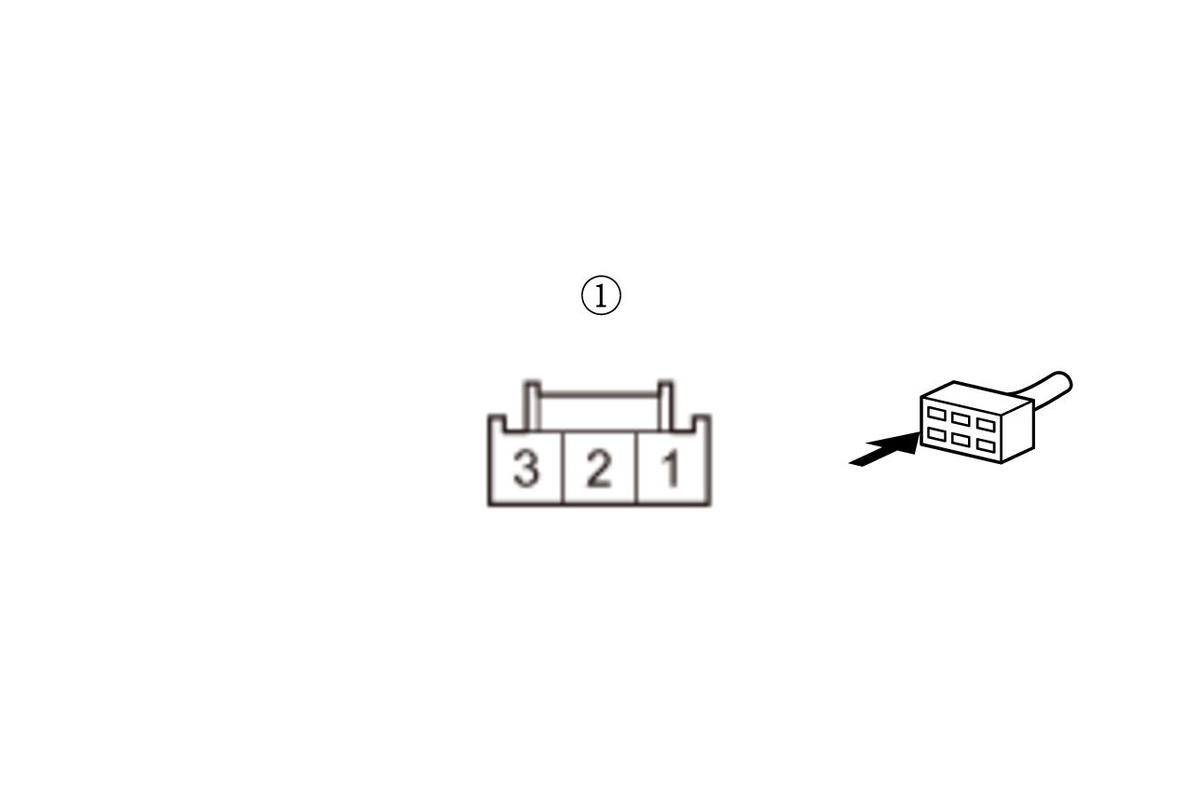

   Test point 1	DC-DC converter connector A (3P) (male terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the alternator .

   NO

   Go to step 6.

6. Open wire check (LIN/LIN (ACG) line)

   - 1. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 2. Disconnect the following connectors.

   Alternator 1P connector

   PCM connector A (50P)

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	DC-DC converter connector A (3P): disconnected
   	Alternator 1P connector: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	Alternator 1P connector (female terminal) No. 1:
   Test point 2	PCM connector A (50P) No. 24 - Refer to: PCM Connector for Inputs and Outputs (19-21 9-Speed A/T)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LIN/LIN (ACG) wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM, then recheck. - Refer to:

   PCM Removal and Installation (19-21 9-Speed A/T)

   If DTC P16E2 goes away and the PCM was substituted, replace the original PCM - Refer to:

   PCM Removal and Installation (19-21 9-Speed A/T) .

   NO

   Repair an open in the LIN/LIN (ACG) wire between the PCM (A24) and the alternator.

7. Open wire check (LIN/LIN (ACG) line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 3. Disconnect the following connectors.

   Alternator 1P connector

   PCM connector A (50P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	Alternator 1P connector (female terminal) No. 1:
   Test point 2	PCM connector A (50P) No. 24 - Refer to: PCM Connector for Inputs and Outputs (19-21 9-Speed A/T)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The LIN/LIN (ACG) wire is OK. Replace the alternator .

   NO

   Repair an open in the LIN/LIN (ACG) wire between the PCM (A24) and the alternator.
