DTC P0327 (6-Speed A/T, 16-18 9-Speed A/T)

DTC P0327  : Knock Sensor 1 (Bank 1) Circuit Low Voltage

Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

DTC (PGM-FI)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Turn the vehicle to the OFF (LOCK) mode.

   - 4. Turn the vehicle to the ON mode.

   - 5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0327 Knock Sensor 1 (Bank 1) Circuit Low Voltage

   Is DTC P0327 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at knock sensor 1 (Bank 1) and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

2. Determine possible failure area (knock sensor 1 (Bank 1), others)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Knock sensor 1 (Bank 1) 2P connector

   - 3. Turn the vehicle to the ON mode.

   - 4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0328 Knock Sensor 1 (Bank 1) Circuit High Voltage

   Is DTC P0328 indicated?

   YES

   Replace knock sensor 1 (Bank 1) .

   NO

   Go to step 3.

3. Shorted wire check (KSB1/KS B1 line to KSSGB1 line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 3. Disconnect the following connector.

   PCM connector C (51P)

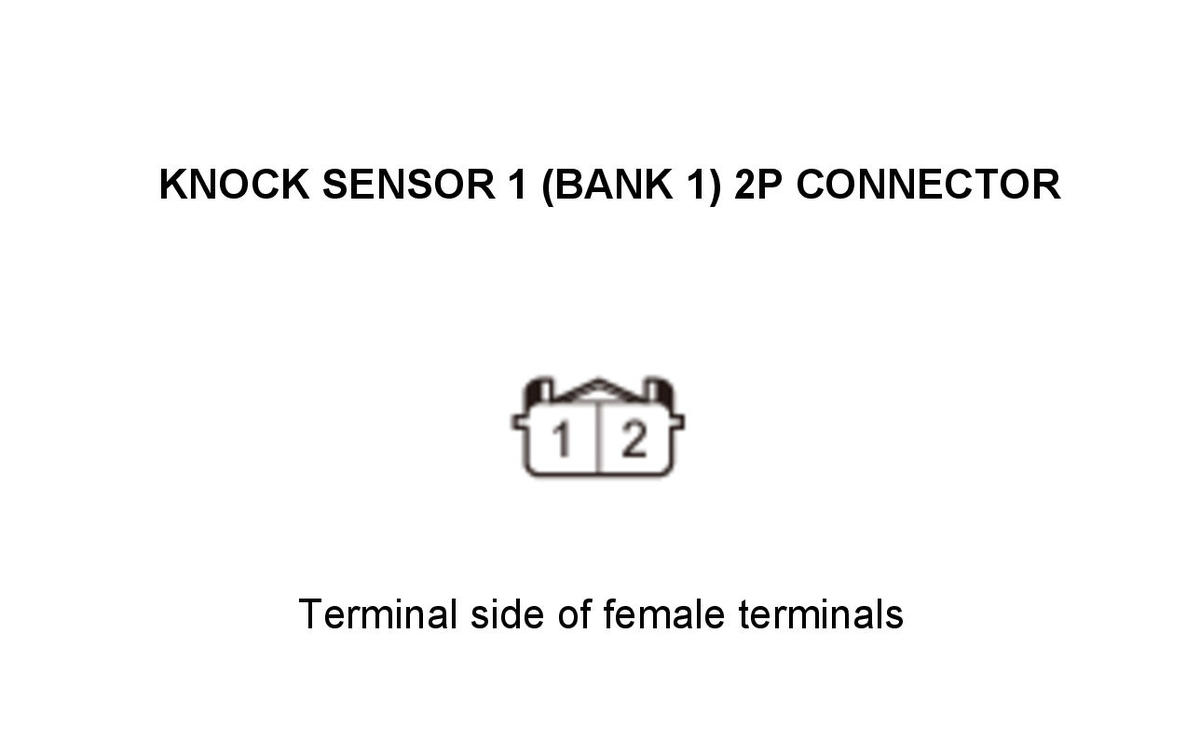

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector C (51P) disconnected
   	Knock sensor 1 (Bank 1) 2P connector: disconnected
   Test point 1	Knock sensor 1 (Bank 1) 2P connector No. 1
   Test point 2	Knock sensor 1 (Bank 1) 2P connector No. 2

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the KSB1/KS B1 wire to the KSSGB1 wire between the PCM and knock sensor 1 (Bank 1).

   NO

   Go to step 4.

4. Shorted wire check (KSB1/KS B1 line)

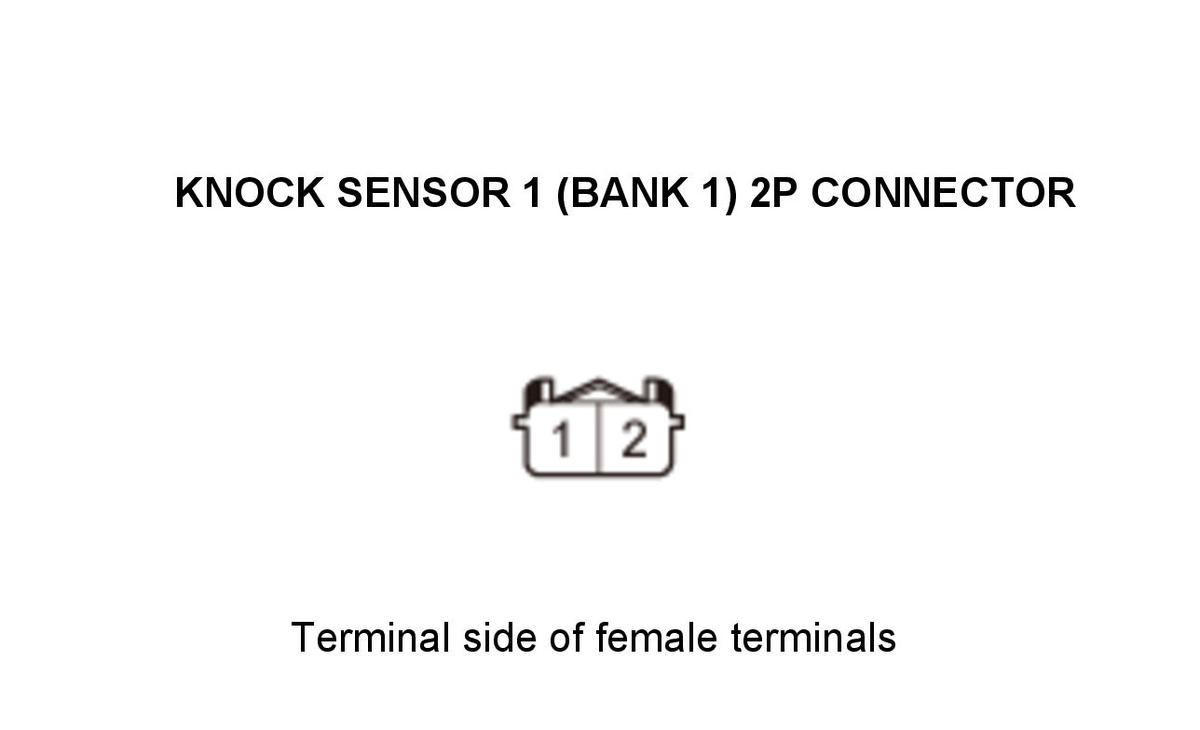

   - 1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector C (51P) disconnected
   	Knock sensor 1 (Bank 1) 2P connector: disconnected
   Test point 1	Knock sensor 1 (Bank 1) 2P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the KSB1/KS B1 wire between the PCM (C41) and knock sensor 1 (Bank 1).

   NO

   The KSB1/KS B1 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good PCM - Refer to: PCM Removal and Installation (6-Speed A/T), ('16-'18 9-Speed A/T) .
