DTC P0113 (19-21 9-Speed A/T)

DTC P0113  : Intake Air Temperature (IAT) Sensor Circuit High Voltage

NOTE:  Before you troubleshoot, review the general troubleshooting information - Refer to: How to Troubleshoot the Fuel and Emissions Systems .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   - 2. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   IAT SENSOR (1)	More than 4.92	V

   Do the current condition (s) match the threshold?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the MAF sensor/IAT sensor and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot - Refer to: How to Troubleshoot the Fuel and Emissions Systems

2. Determine possible failure area (IAT sensor, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   MAF sensor/IAT sensor 5P connector

   - 3. Connect terminals A and B with a jumper wire.

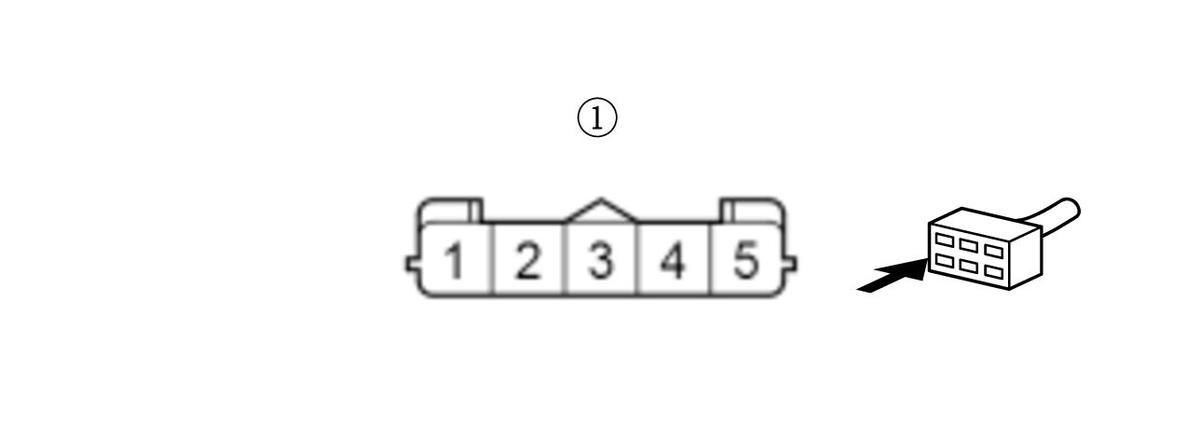

   Terminal A	MAF sensor/IAT sensor 5P connector (female terminals) No. 4:
   Terminal B	MAF sensor/IAT sensor 5P connector (female terminals) No. 5:

   Courtesy of HONDA, U.S.A., INC.

   - 4. Turn the vehicle to the ON mode.

   - 5. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   IAT SENSOR (1)	More than 4.92	V

   Do the current condition (s) match the threshold?

   YES

   Go to step 3.

   NO

   Replace the MAF sensor/IAT sensor .

3. Determine possible failure area (TA line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Remove the jumper wire from the MAF sensor/IAT sensor 5P connector.

   - 3. Turn the vehicle to the ON mode.

   - 4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	MAF sensor/IAT sensor 5P connector: disconnected
   Test point 1	MAF sensor/IAT sensor 5P connector (female terminals) No. 4:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5.0 V?

   YES

   Go to step 4.

   NO

   Go to step 5.

4. Open wire check (SG2/SG6 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 3. Disconnect the following connector.

   PCM connector E (80P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	MAF sensor/IAT sensor 5P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	MAF sensor/IAT sensor 5P connector (female terminals) No. 5:
   Test point 2	PCM connector E (80P) No. 58 - Refer to: PCM Connector for Inputs and Outputs (9-Speed A/T) (2019 2020 2021), .

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The SG2/SG6 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM - Refer to: PCM Removal and Installation (9-Speed A/T 2019 2020 2021) , then recheck. If DTC P0113 goes away and the PCM was substituted, replace the original PCM - Refer to: PCM Removal and Installation (9-Speed A/T 2019 2020 2021) .

   NO

   Repair an open in the SG2/SG6 wire between the PCM (E58) and the MAF sensor/IAT sensor.

5. Open wire check (TA line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

   - 3. Disconnect the following connector.

   PCM connector A (50P)

   - 4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	MAF sensor/IAT sensor 5P connector: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	MAF sensor/IAT sensor 5P connector (female terminals) No. 4:
   Test point 2	PCM connector A (50P) No. 23 - Refer to: PCM Connector for Inputs and Outputs (9-Speed A/T) (2019 2020 2021), .

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The TA wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM - Refer to: PCM Removal and Installation (9-Speed A/T 2019 2020 2021) , then recheck. If DTC P0113 goes away and the PCM was substituted, replace the original PCM - Refer to: PCM Removal and Installation (9-Speed A/T 2019 2020 2021) .

   NO

   Repair an open in the TA wire between the PCM (A23) and the MAF sensor/IAT sensor.
