Removal and Installation

  1. Driver's Dashboard Lower Cover - Remove
  2. RDM OFF Switch - Remove

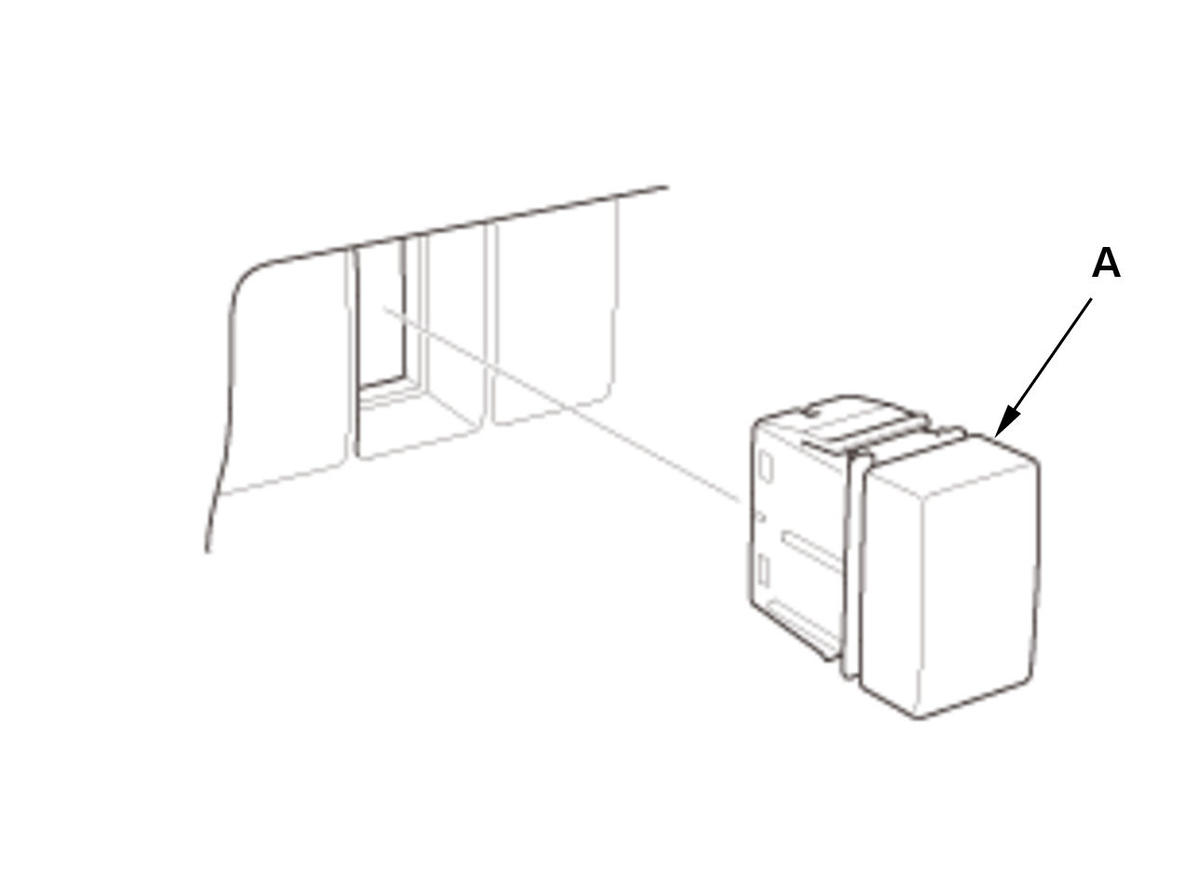

    GHH306306Courtesy of HONDA, U.S.A., INC.

    NOTE:  The mounting position of the RDM OFF switch (A) is different on the model.

  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
