LKAS Switch (2016 2017 2018): Test

  1. LKAS Switch - Test

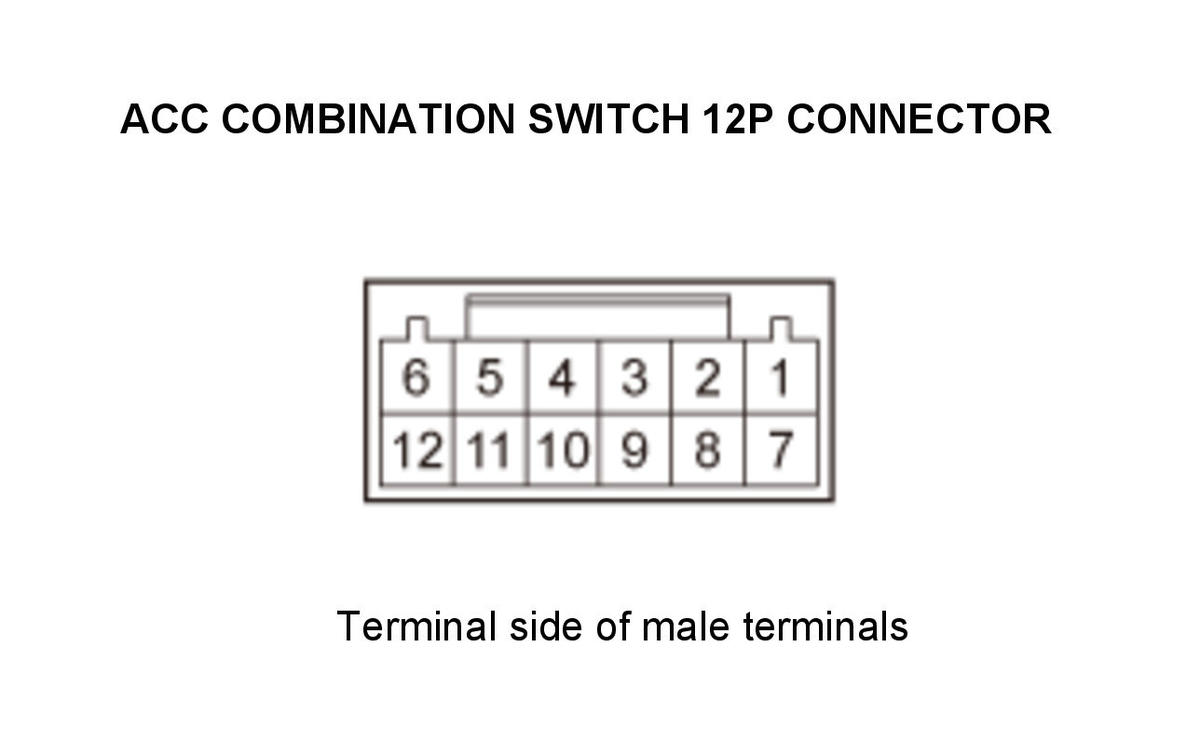

    GHH305910Courtesy of HONDA, U.S.A., INC.
    		 1. Measure the resistance between ACC combination switch 12P connector terminals No. 3 and No. 4 according to the table.

    If there is no resistance in one or more positions, replace the ACC combination switch
    Position Resistance
    OFF About 2.2 kΩ
    LKAS (PRESSED) About 60 Ω
