MICU (2019 2020 2021)
NOTE:
- Before testing, check for DTCs. If any DTCs are indicated, troubleshoot those DTCs first.
- If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Refer to:
- Before testing, make sure the following fuses are OK. Refer to:
No. A26 - Fuse to Components Index (Without Auto Idle Stop System) (2019 2020 2021) .
No. C29*1 -Fuse to Components Index (Without Auto Idle Stop System) (2019 2020 2021) .
No. D4*2 -Fuse to Components Index (Without Auto Idle Stop System) (2019 2020 2021) .
*1: Without auto idle stop system
*2: With auto idle stop system
1. Turn the vehicle to the OFF (LOCK) mode.

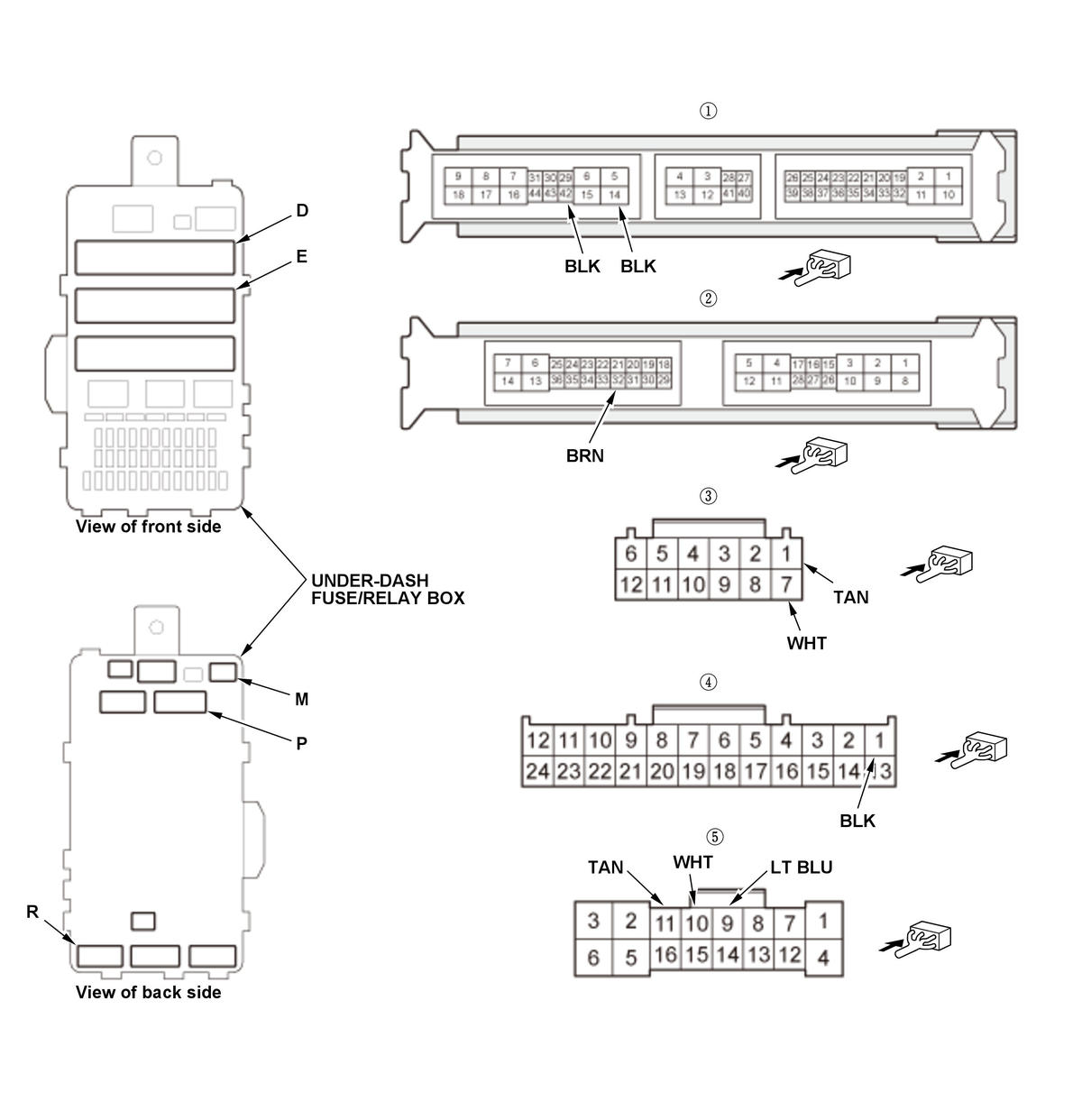

2. Disconnect under-dash fuse/relay box connectors.
Under-dash fuse/relay box connector D (44P) (female terminals): (1)
Under-dash fuse/relay box connector E (38P) (female terminals): (2)
Under-dash fuse/relay box connector M (12P) (female terminals): (3)
Under-dash fuse/relay box connector P (24P) (female terminals): (4)
Under-dash fuse/relay box connector R (16P) (female terminals): (5)
3. Inspect the connectors and socket terminals to be sure they are all making good contact:
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
4. With the connectors still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| M7 | WHT | Disconnect the power window master switch 37P connector | Check for continuity between terminal M7 and power window master switch 37P connector terminal No. 28: There should be continuity. |
An open in the B-CAN wire |
| M1 | TAN | Check for continuity between terminal M1 and power window master switch 37P connector terminal No. 30: There should be continuity. |
||
| M7*1 | WHT | Disconnect the multipurpose camera unit 20P connector | Check for continuity between terminal M7 and multipurpose camera unit 20P connector terminal No. 6: There should be continuity. |
An open in the B-CAN wire |
| M1*1 | TAN | Check for continuity between terminal M1 and multipurpose camera unit 20P connector terminal No. 17: There should be continuity. |
||
| M7*2 | WHT | Disconnect the audio unit connector C (24P) | Check for continuity between terminal M7 and audio unit connector C (24P) terminal No. 24: There should be continuity. |
An open in the B-CAN wire |
| M1*2 | TAN | Check for continuity between terminal M1 and audio unit connector C (24P) terminal No. 12: There should be continuity. |
||
| M7*3 | WHT | Disconnect the wireless charger 7P connector | Check for continuity between terminal M7 and wireless charger 7P connector terminal No. 3: There should be continuity. |
An open in the B-CAN wire |
| M1*3 | TAN | Check for continuity between terminal M1 and wireless charger 7P connector terminal No. 2: There should be continuity. |
||
| M7 | WHT | Disconnect the gauge control module connector A (32P) | Check for continuity between terminal M7 and gauge control module connector A (32P) terminal No. 30: There should be continuity. |
An open in the B-CAN wire |
| M1 | TAN | Check for continuity between terminal M1 and gauge control module connector A (32P) terminal No. 31: There should be continuity. |
||
| M7*4 | WHT | Disconnect the climate control unit connector A (32P) | Check for continuity between terminal M7 and climate control unit connector A (32P) terminal No. 23: There should be continuity. |
An open in the B-CAN wire |
| M1*4 | TAN | Check for continuity between terminal M1 and climate control unit connector A (32P) terminal No. 24: There should be continuity. |
||
| M7*5 | WHT | Disconnect the HVAC control unit connector A (32P) | Check for continuity between terminal M7 and HVAC control unit connector A (32P) terminal No. 23: There should be continuity. |
An open in the B-CAN wire |
| M1*5 | TAN | Check for continuity between terminal M1 and HVAC control unit connector A (32P) terminal No. 24: There should be continuity. |
||
| R10*6 | WHT | Disconnect the power seat control unit connector A (20P) | Check for continuity between terminal R10 and power seat control unit connector A (20P) terminal No. 16: There should be continuity. |
An open in the B-CAN wire |
| R11*6 | TAN | Check for continuity between terminal R11 and power seat control unit connector A (20P) terminal No. There should be continuity. |
||
| M7*7 | WHT | Disconnect the automatic lighting/rain sensor 5P connector | Check for continuity between terminal M7 and automatic lighting/rain sensor 5P connector terminal No. 4: There should be continuity. |
An open in the B-CAN wire |
| M1*7 | TAN | Check for continuity between terminal M1 and automatic lighting/rain sensor 5P connector terminal No. 3: There should be continuity. |
||
| M7*8 | WHT | Disconnect the automatic lighting control unit-sensor 5P connector | Check for continuity between terminal M7 and automatic lighting control unit-sensor 5P connector terminal No. 1: There should be continuity. |
An open in the B-CAN wire |
| M1*8 | TAN | Check for continuity between terminal M1 and automatic lighting control unit-sensor 5P connector terminal No. 2: There should be continuity. |
||
| M7*9 | WHT | Disconnect the parking and back-up sensor control unit 16P connector | Check for continuity between terminal M7 and parking and back-up sensor control unit 16P connector terminal No. 9: There should be continuity. |
An open in the B-CAN wire |
| M1*9 | TAN | Check for continuity between terminal M1 and parking and back-up sensor control unit 16P connector terminal No. 2: There should be continuity. |
||
| R10*9 | WHT | Disconnect the left side BSI radar unit 6P connector | Check for continuity between terminal R10 and left side BSI radar unit 6P connector terminal No. 3: There should be continuity. |
An open in the B-CAN wire |
| R11*9 | TAN | Check for continuity between terminal R11 and left side BSI radar unit 6P connector terminal No. 5: There should be continuity. |
||
| R10*9 | WHT | Disconnect the right side BSI radar unit 6P connector | Check for continuity between terminal M10 and right side BSI radar unit 6P connector terminal No. 3: There should be continuity. |
An open in the B-CAN wire |
| R11*9 | TAN | Check for continuity between terminal R11 and right side BSI radar unit 6P connector terminal No. 5: There should be continuity. |
||
| R10 | WHT | Disconnect the ventilated seat control unit 14P connector* 12 or front seat heater control unit 14P connector* 13 | Check for continuity between terminal R10 and ventilated seat control unit 14P connector* 12 or front seat heater control unit 14P connector* 13 terminal No. 11: There should be continuity. |
An open in the B-CAN wire |
| R11 | TAN | Check for continuity between terminal R11 and ventilated seat control unit 14P connector* 12 or front seat heater control unit 14P connector* 13 terminal No. 10: There should be continuity. |
||
| R10 | WHT | Disconnect the second row seat heater control unit 14P connector | Check for continuity between terminal R10 and second row seat heater control unit 14P connector terminal No. 1 There should be continuity. |
An open in the B-CAN wire |
| R11 | TAN | Check for continuity between terminal R11 and second row seat heater control unit 14P connector terminal No. 10: There should be continuity. |
||
| M7 | WHT | Disconnect the headlight leveling control unit 12P connector | Check for continuity between terminal M7 and headlight leveling control unit 12P connector terminal No. 7: There should be continuity. |
An open in the B-CAN wire |
| M1 | TAN | Check for continuity between terminal M1 and headlight leveling control unit 12P connector terminal No. 8: There should be continuity. |
||
| M7*10 | WHT | Disconnect the telematics control unit 32P connector | Check for continuity between terminal M7 and telematics control unit 32P connector terminal No. 23: There should be continuity. |
An open in the B-CAN wire |
| M1*10 | TAN | Check for continuity between terminal M1 and telematics control unit 32P connector terminal No. 22: There should be continuity. |
||
| R10*11 | WHT | Disconnect the power tailgate control unit connector A (24P) | Check for continuity between terminal R10 and power tailgate control unit connector A (24P) terminal No. 6: There should be continuity. |
An open in the B-CAN wire |
| R11*11 | TAN | Check for continuity between terminal R11 and power tailgate control unit connector A (24P) terminal No. 7: There should be continuity. |
||
| R9 | LT BLU | Under all conditions | Check for continuity between terminal R9 and data link connector (DLC) terminal No. 7: There should be continuity. |
An open in the K-LINE wire |
*1: With multipurpose camera unit
*2: Color audio type
*3: With wireless charger
*4: With climate control
*5: Without climate control
*6: With DPMS
*7: With automatic wiper
*8: Without automatic wiper
*9: With BSI
*10: With telematics
*11: With power tailgate
*12: With ventilated seat
*13: With front seat heater control unit
5. Reconnect the connectors to the under-dash fuse/relay box, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the Under-Dash Fuse/Relay Box - Removal and Installation .
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| E32* | BRN | Vehicle ON mode | Measure the voltage to ground: There should be battery voltage. |
|
| D14 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| D42 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| P1 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
*: With auto idle stop system
