Transmission Range Switch Test

  1. Remove the air intake scoop (see step  5 ).
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  4. Remove the intake air duct (see step  10 ).
  5. Remove the main under-hood fuse box (see step  11 ).
  6. Remove the battery base (see step  12 ).
  7. Disconnect the transmission range switch connector.

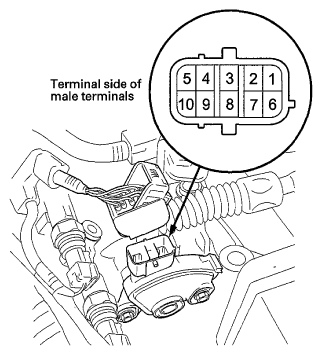

    Fig 1: Identifying Transmission Range Switch Connector Terminals
    G06969241Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Check for continuity between the terminals at the transmission range switch connector. There should be continuity between the terminals in the following table for each transmission range switch position.

    Transmission Range Switch Connector

    Fig 2: Transmission Range Switch Connector Terminals Continuity Chart
    G06969242Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. The transmission range switch test is finished if the test results are OK. Reinstall all removed components. If there is no continuity between any terminals, check the transmission range switch installation. If the switch is installed correctly, replace the switch (see TRANSMISSION RANGE SWITCH REPLACEMENT  ).
  10. Install the battery base (see step  58 ).
  11. Install the main under-hood fuse box (see step  59 ).
  12. Install the intake air duct (see step  60 ).
  13. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  14. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  15. Install the air intake scoop (see step  66 ).
