Secondary Shaft ATF Feed Pipe Cap Installation

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new O-rings (A) on the ATF feed pipe cap (B).

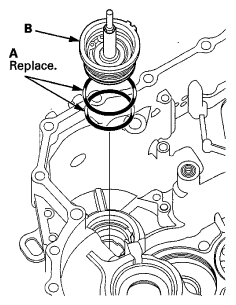

    Fig 1: Identifying O-Rings And ATF Feed Pipe Cap
    G06967180Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the ATF feed pipe cap in the transmission housing. Do not pinch the O-rings.
  3. Install the 65 mm thrust shim (A) from the transmission housing.
    Fig 2: Identifying Thrust Shim
    G06967181Courtesy of AMERICAN HONDA MOTOR CO., INC.
