Intermediary Shaft Bearing Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Bearing Remover Shaft Set, 20 mm 07936-3710600
Remover Handle 07936-3710100
Slide Hammer 07936-371020A
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 37 x 40 mm 07746-0010200

Remove the intermediary shaft bearing from the transmission housing using the 20 mm bearing remover shaft set, the remover handle, and the slide hammer.

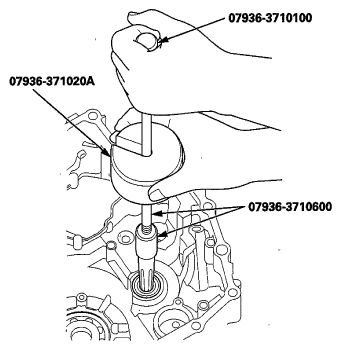

Fig 1: Removing Intermediary Shaft Bearing From Transmission Housing Using Bearing Remover Shaft Set, Remover Handle And Slide Hammer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new bearing until it bottoms in the transmission housing using the driver handle and the 37 x 40 mm bearing driver attachment.

Fig 2: Installing Bearing In Transmission Housing Using Driver Handle And Bearing Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
