Secondary Shaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Bearing Remover Shaft Set, 30 mm 07936-8890300
• Remover Handle 07936-3710100
• Slide Hammer 07936-371020A
• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 37 x 40 mm 07746-0010200
• Bearing Driver Attachment, 62 x 68 mm 07746-0010500

1. Remove the bolt, then remove the lock washer (A) and the bearing set plate (B).

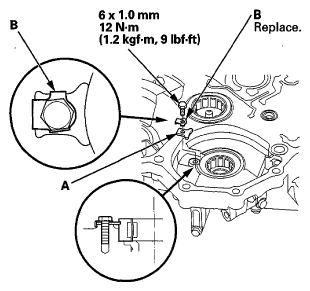

   Fig 1: Identifying Lock Washer And Bearing Set Plate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the secondary shaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).

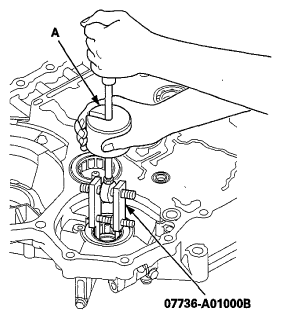

   Fig 2: Removing Secondary Shaft Bearing From Torque Converter Housing Using Adjustable Bearing Puller And Commercially Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the ATF guide collar from the torque converter housing, then remove the O-rings from the ATF guide collar.
   Fig 3: Identifying ATF Guide Collar

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the 29 x 39 x 9.5 mm secondary shaft bearing (A) from the torque converter housing using the 30 mm bearing remover shaft set, the remover handle, and the slide hammer.

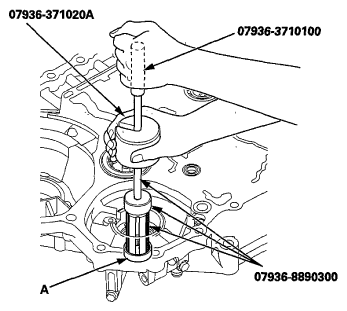

   Fig 4: Removing Secondary Shaft Bearing From Torque Converter Housing Using Bearing Remover Shaft Set, Remover Handle And Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install a 29 x 39 x 9.5 mm secondary shaft bearing (A) until it bottoms out into the torque converter housing using the driver handle and the 37 x 40 mm bearing driver attachment.

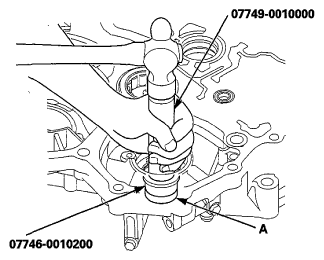

   Fig 5: Installing Secondary Shaft Bearing Into Torque Converter Housing Using Driver Handle And Bearing Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install new O-rings (A) into the ATF guide collar grooves, then install the ATF guide collar (B) in the torque converter housing.
   Fig 6: Identifying O-Rings And ATF Guide Collar

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the bearing in the direction shown in the torque converter housing using the driver handle and the 62 x 68 mm bearing driver attachment.
   Fig 7: Installing Bearing In Torque Converter Housing Using Driver Handle And Bearing Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Check that the bearing groove aligns with the set plate mounting surface, then install the set plate (A) by aligning it with the bearing groove.
   Fig 8: Installing Set Plate With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Install a new lock washer (B) and the bolt, then bend the lock tab of the lock washer against the bolt head.
