Intermediary Shaft Bearing Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Adjustable Bearing Puller, 25-40 mm 07736-A01000B
Driver Handle, 15 x 135L 07749-0010000
Bearing Driver Attachment, 52 x 55 mm 07746-0010400

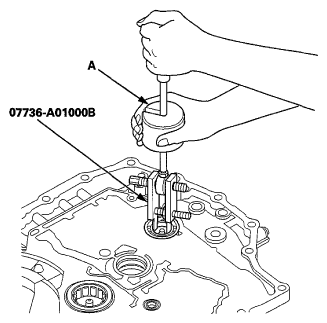

Remove the intermediary shaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).

Fig 1: Removing Intermediary Shaft Bearing From Torque Converter Housing Using Adjustable Bearing Puller And Commercially Slide Hammer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ATF guide plate (A), then install a new bearing (B) in the torque converter housing.

Fig 2: Identifying ATF Guide Plate And Torque Converter Housing Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

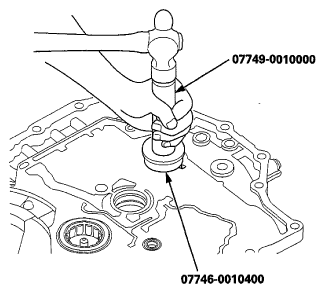

Drive the bearing until it bottoms out in the torque converter housing using the driver handle and the 52 x 55 mm bearing driver attachment.

Fig 3: Driving Bearing Into Torque Converter Housing Using Driver Handle And Bearing Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
