Countershaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100

1. Remove the countershaft bearing from the torque converter housing using the 25-40 mm adjustable bearing puller and a commercially available 3/8 "-16 slide hammer (A).
   Fig 1: Removing Countershaft Bearing From Torque Converter Housing Using Adjustable Bearing Puller And Commercially Slide Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the ATF guide plate (A) into the torque converter housing, then install a new bearing (B) in the direction shown.
   Fig 2: Identifying ATF Guide Plate And Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the bearing (A) in the torque converter housing using the driver handle and the 78 x 80 mm bearing driver attachment; install the bearing outer notch-cut (B) to a depth (C) of 0-0.03 mm (0-0.0012 in) below the torque converter housing surface (D).

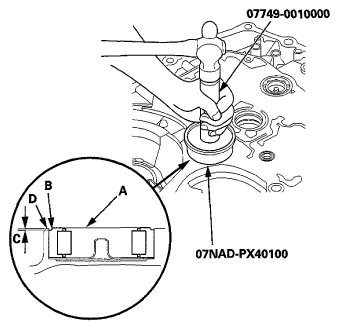

   Fig 3: Installing Bearing In Torque Converter Housing Using Driver Handle And Bearing Driver Attachment

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
