Section 1 (Automatic Transmission - 5-Speed)
>>
System Description
>>
Transmission Cutaway View
Transmission Cutaway View
WARNING:
This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

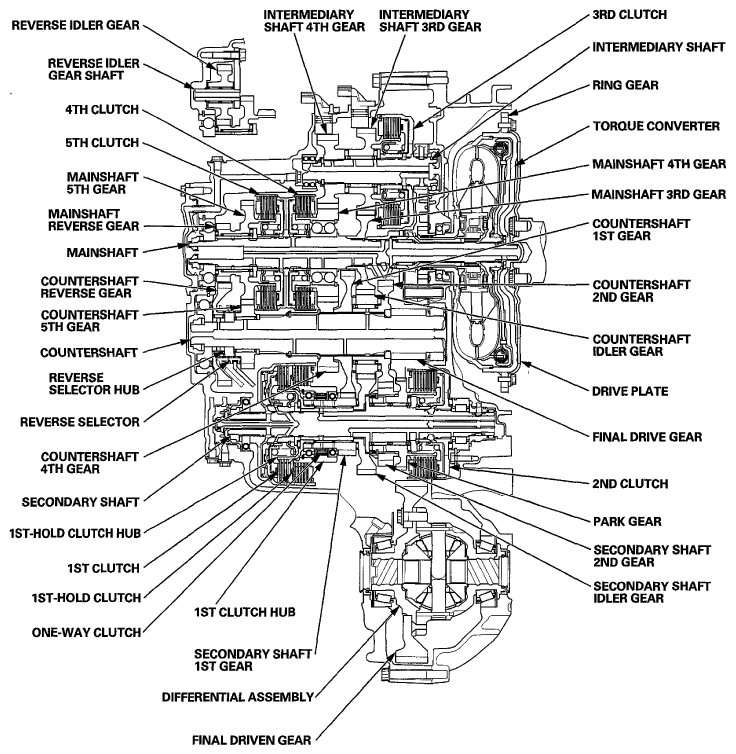

Fig 1: Transmission Cutaway View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
