Deceleration in 1st Gear in L
WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

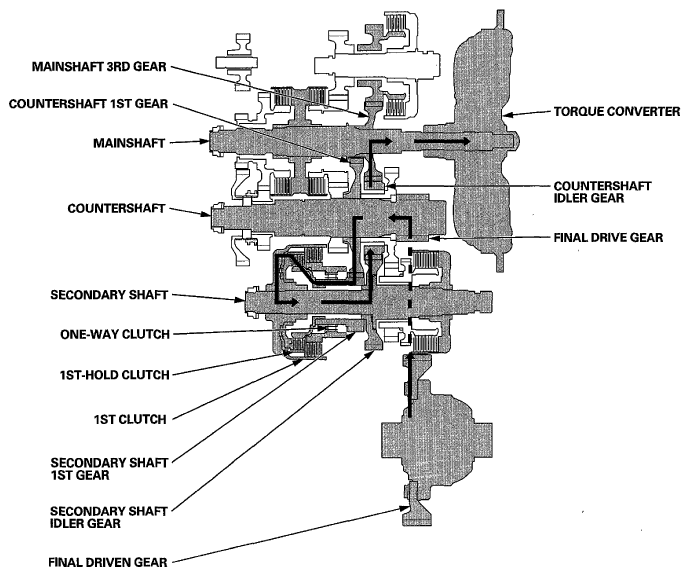

The power flow in L when decelerating is as follows:
- Hydraulic pressure is applied to the 1st clutch and the 1st-hold clutch.
- Rolling resistance from the road surface goes through the front wheels to the final driven gear, then to the countershaft idler gear via the 1st-hold clutch, the secondary shaft 1st gear, and the secondary shaft idler gear.
- The one-way clutch cannot transmit power because the application of torque is reversed.
- The force transmitted to the secondary shaft idler gear turns the mainshaft 3rd gear via the countershaft idler gear. As a result, engine braking can be obtained with 1st gear.
