Torque Converter Clutch Lock-Up OFF (Disengaging Torque Converter Clutch)

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Fluid entered from the chamber between the torque converter cover and the torque converter clutch piston passes through the torque converter and goes out from the chambers between the turbine and the stator, and between the pump and the stator. As a result, the torque converter clutch piston moves away from the torque converter cover, and the torque converter clutch lock-up is released; torque converter clutch lock-up OFF.

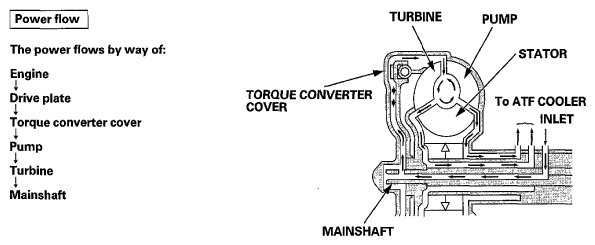

Fig 1: Power Flow Diagram - Torque Converter Clutch Lock-Up Off (Disengaging Torque Converter Clutch)
G06966837Courtesy of AMERICAN HONDA MOTOR CO., INC.
