Shifting to D from N

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When shifting to D from N, the condition of the shift solenoid valves remains the same as in N. The manual valve is moved to the D position, and uncovers the line pressure port (4) leading to CPC valves A and C. The PCM actuates A/T clutch pressure control solenoid valves A and C, A/T clutch pressure control solenoid valve A pressure (56) flows to CPC valve A, and A/T clutch pressure control solenoid valve C pressure (58) flows to CPC valve C. CPC valves A and C regulate line pressure (4), line pressure (4) becomes CPC C pressure (4C) at CPC valve C, and becomes CPC A pressure at CPC valve A. CPC C pressure (4C) becomes 1st clutch pressure (10) at shift valve D, and 1st clutch pressure flows to the 1st clutch. CPC A pressure (4A) becomes 2nd clutch pressure (20) at shift valve B via shift valves A and C. The 1st clutch and 2nd clutch engage gently by CPC pressure.

NOTE: When used, "left" or "right" indicates direction on the hydraulic circuit.

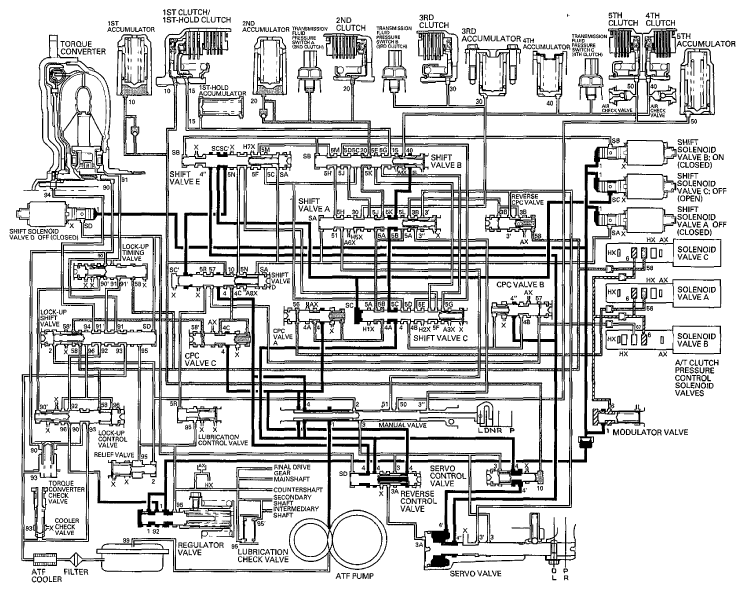

Fig 1: Hydraulic Flow Diagram - Shifting To D From N

Courtesy of AMERICAN HONDA MOTOR CO., INC.
