Regulator Valve Body

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the cooler check valve, the lock-up control valve, the servo valve/shift fork shaft, and the 3rd accumulator.

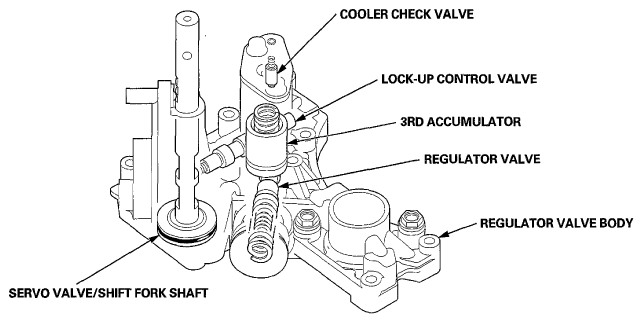

Fig 1: Identifying Regulator Valve Body Components
G06966815Courtesy of AMERICAN HONDA MOTOR CO., INC.
