Accumulator Body

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The accumulator body is on the secondary valve body, and contains the 1st, 1st-hold, 2nd, 4th, and 5th accumulators. The 3rd accumulator is in the regulator valve body, and shift solenoid valves A, B, C, and D. The 3rd accumulator is in the regulator valve body.

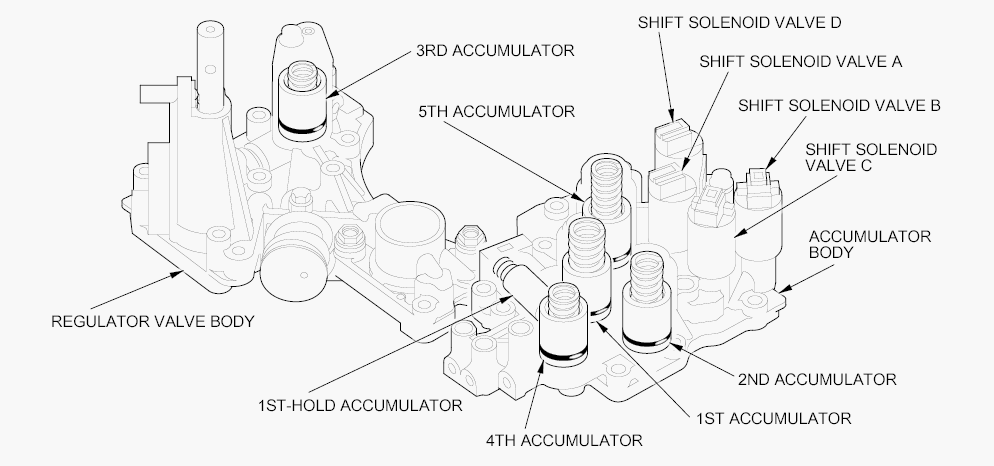

Fig 1: Identifying Accumulator Body Components
G00522704Courtesy of AMERICAN HONDA MOTOR CO., INC.
