Grade Logic Control: Ascending Control

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

When the PCM determines that the vehicle is climbing a hill in D, the PCM extends the engagement area of 2nd gear, 3rd gear, and 4th gear to prevent the transmission from frequently shifting between 2nd and 3rd gears, between 3rd and 4th gears, and between 4th and 5th gears, so the vehicle can run smoothly and have more power when needed.

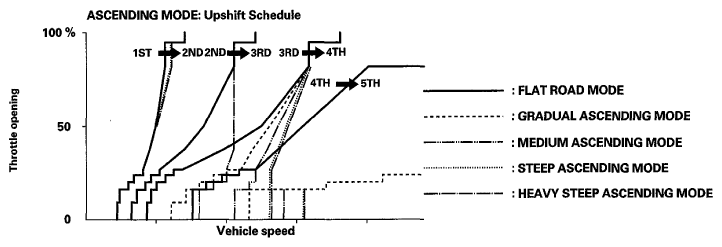

Fig 1: Grade Logic Control - Ascending Control Graph
G06966804Courtesy of AMERICAN HONDA MOTOR CO., INC.
