Secondary Shaft 1st Gear Axial Clearance Inspection

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

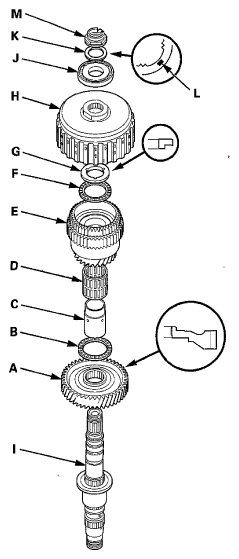

  1. Install the idler gear (A), the 43.5 x 59 x 2.5 mm thrust needle bearing (B), the 1st gear collar (C), the needle bearing (D), the 1st gear assembly (E), the 40 x 57 x 2.5 mm thrust needle bearing (F), the original thickness 52 mm washer (G), and the 1st/1st-hold clutch (H) on the secondary shaft (I). Install the idler gear and the 52 mm washer in the direction shown. Do not install the O-rings during inspection.
    Fig 1: Identifying Idler Gear, 1st Gear Collar, Needle Bearing, 1st Gear Assembly, Thrust Needle Bearing And 1st/1st-Hold Clutch
    G06967240Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the ball bearing (J) over the 1st/1st-hold clutch guide using the 40 mm I.D. driver handle, the 30 mm I.D. bearing driver attachment, and a press.
    Fig 2: Installing Ball Bearing Over 1st/1st-Hold Clutch Guide Using I.D. Driver Handle, I.D. Bearing Driver Attachment And Press
    G06967241Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the splined washer (K) with the marked side (L) up over the ball bearing in the same manner as installing the ball bearing using the 40 mm I.D. driver handle, the 30 mm I.D. bearing driver attachment, and the press.
  4. Install the old locknut (M), and tighten it to 29 N.m (3.0 kgf.m, 21 lbf.ft).
  5. Set a dial indicator (A) on the 1st clutch hub (B).
    Fig 3: Setting Dial Indicator On 1st Clutch Hub
    G06967242Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Measure the 1st gear axial clearance in at least three places while moving 1st gear. Use the average as the actual clearance.

    Standard: 0.100-0.145 mm (0.00394-0.00571 in)

    Fig 4: Measuring 1st Gear Axial Clearance
    G06967243Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. If the clearance is out of the standard, remove the washer and measure its height difference.
    Fig 5: Identifying 1st Gear Axial Clearance
    G06967244Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Select and install a new washer, then recheck the clearance.

    WASHER, 52 mm

    WASHER THICKNESS SPECIFICATION

    No. Height
    A 2.705 mm (0.10650 in)
    B 2.680 mm (0.10551 in)
    C 2.655 mm (0.10453 in)
    D 2.630 mm (0.10354 in)
    LU 2.605 mm (0.10256 in)
    F 2.580 mm (0.10157 in)
    G 2.555 mm (0.10059 in)
    H 2.530 mm (0.09961 in)
    I 2.505 mm (0.09862 in)
    J 2.480 mm (0.09764 in)
    K 2.455 mm (0.09665 in)
    L 2.430 mm (0.09567 in)
    M 2.405 mm (0.09468 in)
