Intermediary Shaft Installation Height Inspection/Adjustment

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Install the intermediary shaft (A) in the torque converter housing, and install the original thickness 26.5 mm washer (B) on the intermediary shaft.
Intermediary Shaft Installation Height

Standard:

137.285-137.385 mm (5.40491-5.40885 in)

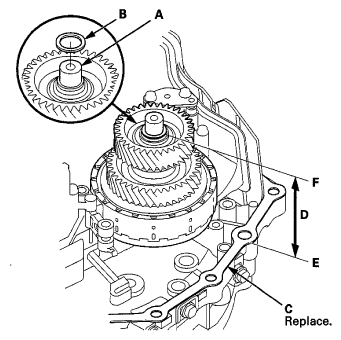

Fig 1: Identifying Intermediary Shaft Installation Height
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Intermediary Shaft Cutaway View

Fig 2: Intermediary Shaft Cutaway View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new gasket (C) on the torque converter housing.
Measure the installed height (D) of the intermediary shaft between the surface (E) of the gasket and the surface of the 26.5 mm washer (F).
If the measurement is out of the standard, remove the 26.5 mm washer and measure its thickness.

Select and install a new washer, then recheck the installation height.

WASHER, 26.5 mm

WASHER THICKNESS SPECIFICATION

No.	Thickness
A	1.05 mm (0.0413 in)
B	1.13 mm (0.0445 in)
C	1.21 mm (0.0476 in)
D	1.29 mm (0.0508 in)
E	1.37 mm (0.0539 in)
F	1.45 mm (0.0571 in)
G	1.53 mm (0.0602 in)
H	1.61 mm (0.0634 in)
I	1.69 mm (0.0665 in)
J	1.77 mm (0.0697 in)
K	1.85 mm (0.0728 in)
L	1.93 mm (0.0760 in)
M	2.01 mm (0.0791 in)
N	2.09 mm (0.0823 in)
O	0.97 mm (0.0382 in)
