1st-Hold Clutch

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the snap ring (A) with a screwdriver (B).

Fig 1: Removing Snap Ring With Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 1st clutch end-plate (A), the 1st clutch discs (B) (5), the 1st clutch wave-plates (C) (5), the disc spring (D) from the 1st clutch drum (E).

Fig 2: Identifying 1st Clutch End-Plate, 1st Clutch Discs, 1st Clutch Wave-Plates, Disc Spring And 1st Clutch Drum
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the clearance between 1st-hold clutch plate B and the top disc using a feeler gauge (A) while pressing 1st-hold clutch plate B down. Take measurements in at least three places, and use the average as the actual clearance.
Clearance Between 1st-Hold Clutch Plate B and Top Disc

Service Limit: 0.6-1.0 mm (0.024-0.039 in)
- If the clearance is beyond the service limit, replace the 1st clutch assembly.
- If the clearance is within the service limit, go to step 4.

  Fig 3: Measuring Clearance Between 1st-Hold Clutch Plate And Top Disc Using Feeler Gauge
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

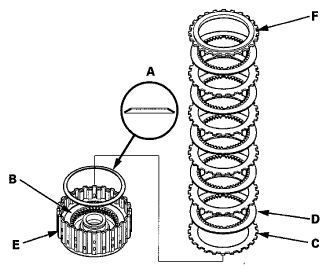

Install the disc spring (A) on 1st-hold clutch plate B in the direction shown. Starting with the 1st clutch wave-plate, alternately install the clutch wave-plates (C) (5) and the clutch discs (D) (5) in the 1st clutch drum (E), then install the clutch end-plate (F) with the flat side toward the top disc.

Fig 4: Installing Disc Spring On 1st-Hold Clutch Plate B
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the snap ring using a screwdriver to secure the clutch end-plate.

Fig 5: Installing Snap Ring Using Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check that the clutch piston moves by applying air pressure into the fluid passage.
