1st Clutch Hub Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Driver Handle, 15 x 135L 07749-0010000
Driver Attachment, 43.5 mm 07947-6340500
Attachment, 78 x 90 mm 07GAD-SD40101

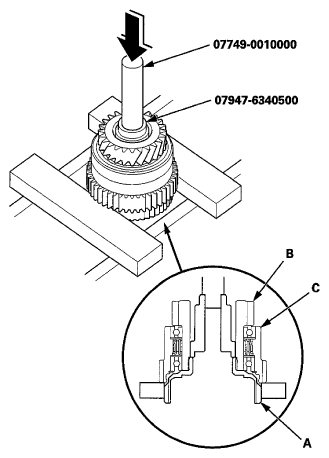

Remove the 1st-hold clutch hub (A) from 1st gear (B) using the driver handle, the 43.5 mm driver attachment, and a press.

Fig 1: Removing 1st-Hold Clutch Hub From 1st Gear Using Driver Handle, Driver Attachment And Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 1st clutch hub (C) from 1st gear.
Install a new 1st clutch hub (A) over 1st gear (B), and install the 1st-hold clutch hub (C) in 1st gear.

Fig 2: Installing 1st Clutch Hub Over 1st Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the 1st-hold clutch hub (A) in 1st gear (B) using the driver handle, the 78 x 90 mm attachment, and the press.

Fig 3: Installing 1st-Hold Clutch Hub In 1st Gear Using Driver Handle, Attachment And Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.
