Output Shaft (Countershaft) Speed Sensor Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air intake scoop (see step  5 ).
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the intake air duct (see step  10 ).
  4. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  5. Remove the main under-hood fuse box (see step  11 ).
  6. Remove the battery base (see step  12 ).
  7. Disconnect the output shaft (countershaft) speed sensor connector, and remove the output shaft (countershaft) speed sensor (A) with the sensor washer (B).

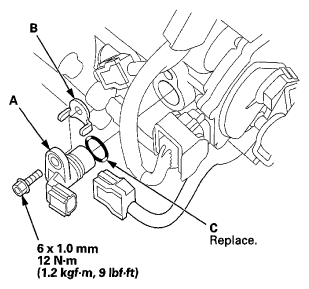

    Fig 1: Output Shaft (Countershaft) Speed Sensor, Sensor Washer And O-Ring With Torque Specifications
    G06966953Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install a new O-ring (C) on a new output shaft (countershaft) speed sensor, then install the output shaft (countershaft) speed sensor with the sensor washer.
  9. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  10. Install the battery base (see step  70 ).
  11. Install the main under-hood fuse box (see step  71 ).
  12. Install the intake air duct (see step  72 ).
  13. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  14. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  15. Install the air intake scoop (see step  77 ).
