Exploded View

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

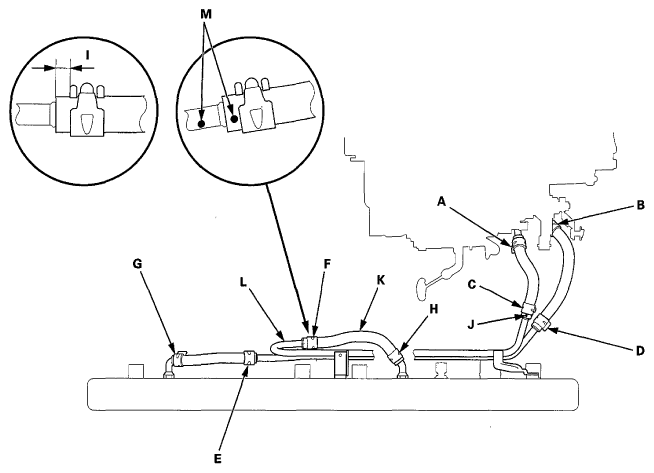

Fig 1: Locating ATF Cooler Hoses And Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: When installing the hose clamps, make sure they do not interfere with the surrounding parts.

Install the ATF cooler hoses over the ATF cooler lines with the clips at appropriate points in reference to the following list.

NOTE:

Be sure to install the ATF cooler hose with the white paint mark (J) facing up.
Connect the ATF cooler hose (K) to the ATF cooler line (L) by aligning the paint marks (M).

ATF COOLER HOSE DISTANCE REFERENCE

Point	Distance from Hose End to Clip (1)	Hose End Contact Point
A	6-8 mm (0.24-0.31 in)	Bulge
B
C
D
E
F
G	2-4 mm (0.08-0.16 in)	Bulge
H	2-4 mm (0.08-0.16 in)	Bulge

Refill the transmission with ATF to the proper level (see ATF REPLACEMENT ).
