Shift Lock Solenoid Test
WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

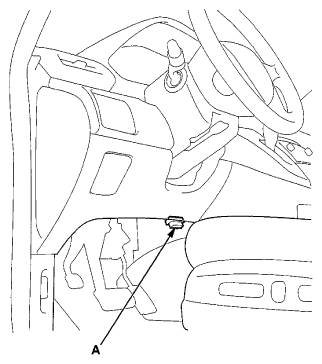

- Connect the HDS to the DLC (A) located under the driver's side of the dashboard.
- Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ).
- Select Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift lock solenoid operates with the HDS.
- Check that the shift lever can be moved out of P when the Shift Lock Solenoid is ON. Move the shift lever back to P, and check that it locks with the Shift Lock Solenoid is OFF.
- Check that the shift lock releases when the shift lock release is pushed, and check that it locks when the shift lock release is released.
- If the shift lock solenoid does not work properly, go to the SHIFT LOCK SYSTEM CIRCUIT TROUBLESHOOTING .
