Transmission Range Switch Test

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air intake scoop (see step  5 ).
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  4. Remove the intake air duct (see step  10 ).
  5. Remove the main under-hood fuse box (see step  11 ).
  6. Remove the battery base (see step  12 ).
  7. Disconnect the transmission range switch connector.

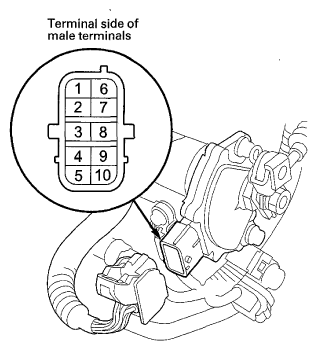

    Fig 1: Identifying Transmission Range Switch Connector Terminals
    G06967106Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Check for continuity between terminals at the transmission range switch connector. There should be continuity between the terminals in the following table for each switch position.

    Transmission Range Switch Connector

    Fig 2: Transmission Range Switch Connector Terminal Continuity Chart
    G06967107Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. If the transmission range switch tests OK, the transmission range switch test is finished; if there is no continuity between any terminals, check the transmission range switch installation. If the switch is installed correctly, replace the switch (see TRANSMISSION RANGE SWITCH REPLACEMENT  ).
  10. Check the connectors for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
  11. Install the battery base (see step  70 ).
  12. Install the main under-hood fuse box (see step  71 ).
  13. Install the intake air duct (see step  72 ).
  14. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  15. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  16. Install the air intake scoop (see step  77 ).
