Circuit Diagram

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

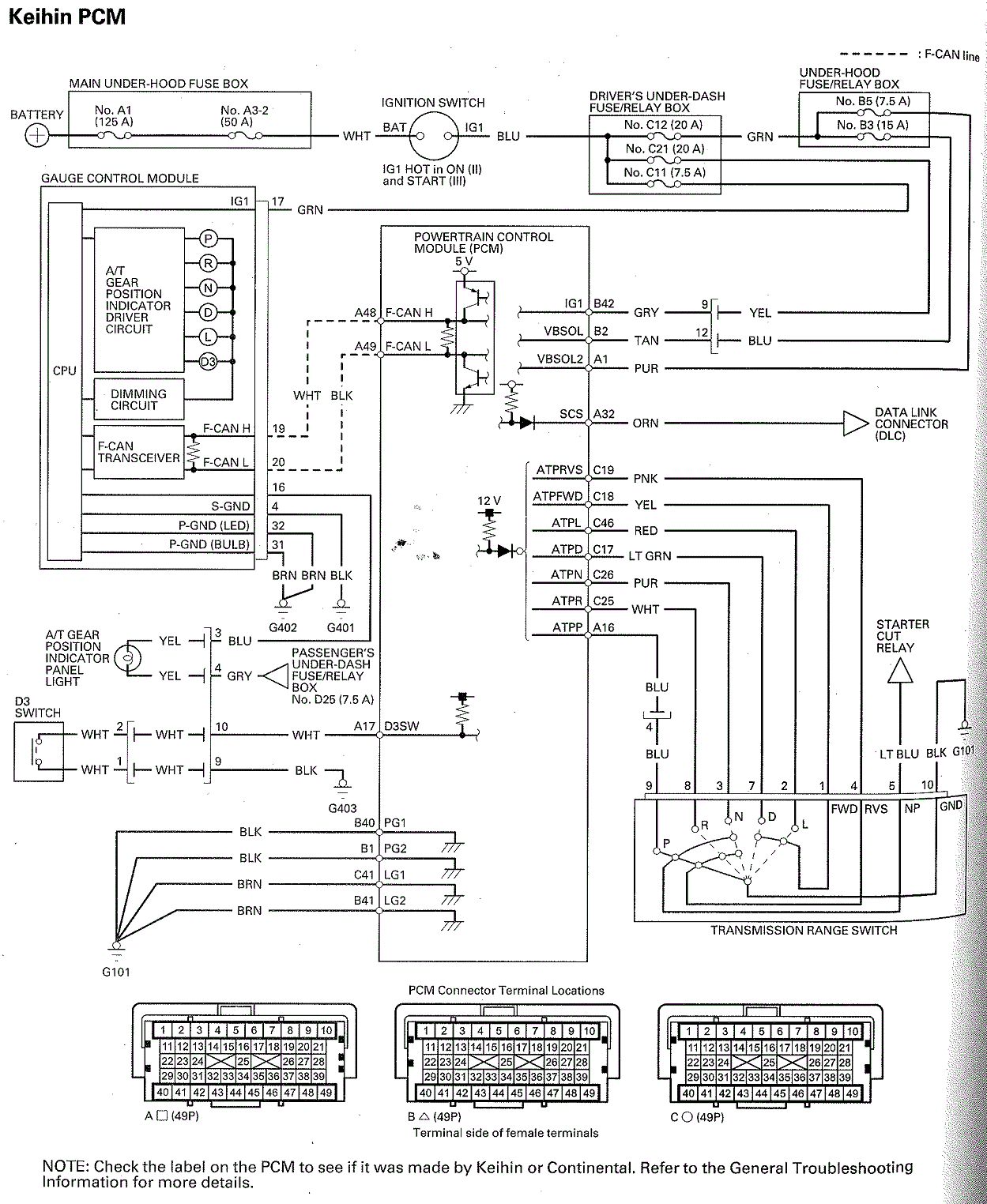

Fig 1: A/T Gear Position Indicator - Circuit Diagram (Keihin PCM)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

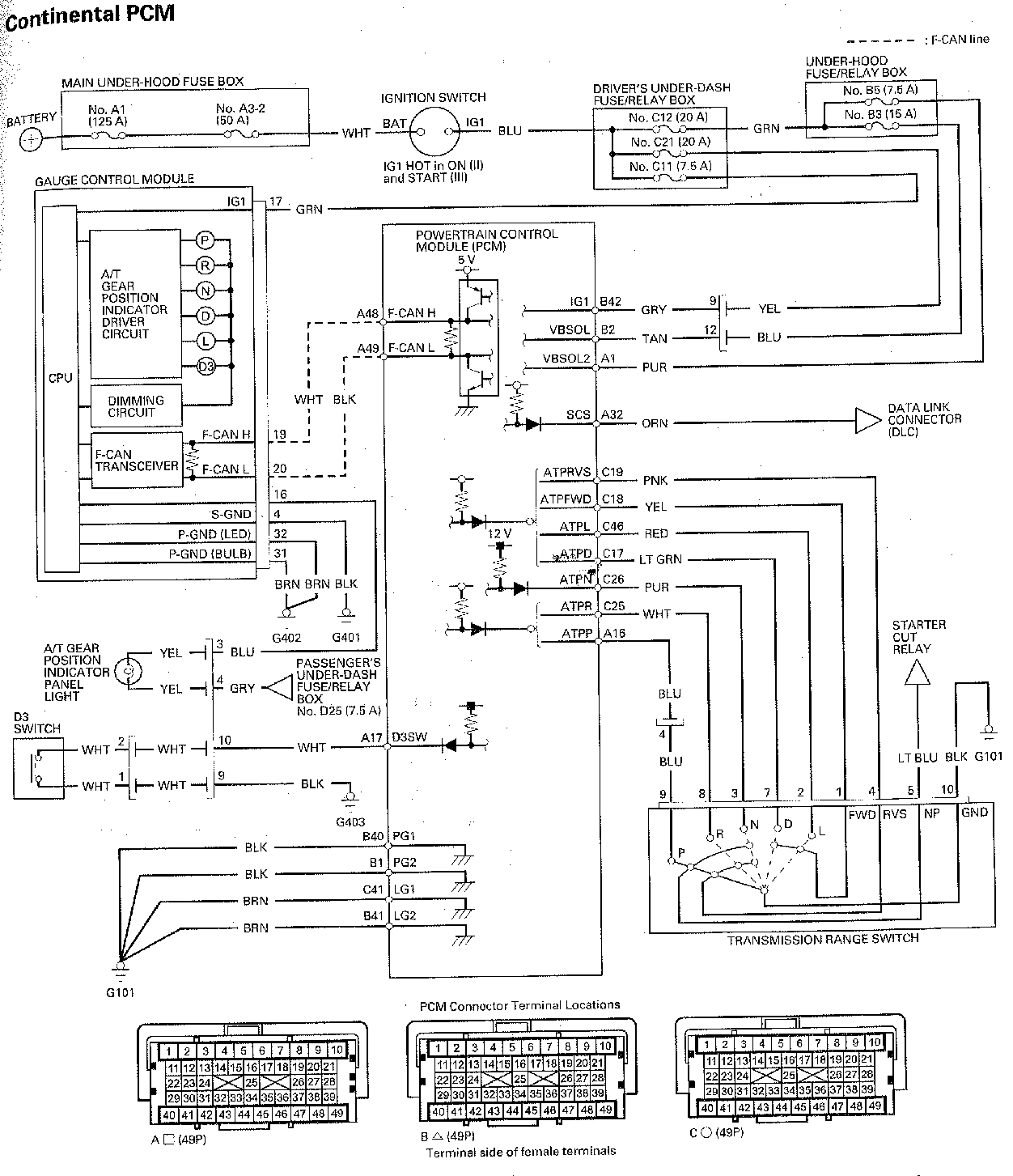

Fig 2: A/T Gear Position Indicator - Circuit Diagram (Continental PCM)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Check the label on the PCM to see if it was made by Keihin or Continental. Refer to the GENERAL TROUBLESHOOTING INFORMATION for more details.
