Oil Seal Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Driver Handle, 15 x 135L 07749-0010000
Oil Seal Driver Attachment 07GAD-PG40100
Oil Seal Driver Attachment, 58 mm 07JAD-PH80101

Remove the oil seal from the transmission housing.

Fig 1: Removing Oil Seal From Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the oil seal from the torque converter housing.

Fig 2: Removing Oil Seal From Torque Converter Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

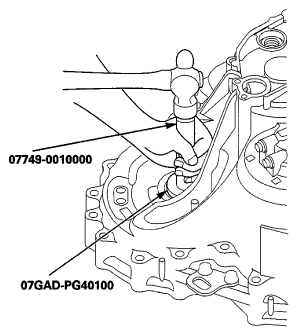

Install a new oil seal flush with the transmission housing using the driver handle and the oil seal driver attachment.

Fig 3: Installing Oil Seal Flush With Transmission Housing Using Driver Handle And Oil Seal Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install a new oil seal flush with the torque converter housing using the driver handle and the 58 mm oil seal driver attachment.

Fig 4: Installing Oil Seal Flush With Torque Converter Housing Using Driver Handle And Oil Seal Driver Attachment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
