A/T Differential: Disassembly/Reassembly

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Tighten the bolts to the specified torque in a crisscross pattern in at least two steps.

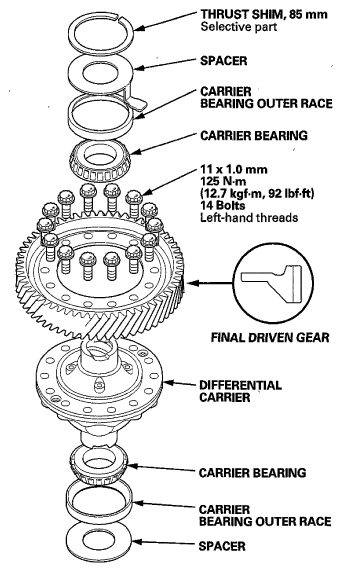

Fig 1: Exploded View Of A/T Differential With Torque Specifications
G06967312Courtesy of AMERICAN HONDA MOTOR CO., INC.
