A/T Clutch Pressure Control Solenoid Valve A and B Replacement

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air intake scoop (see step  5 ).
  2. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
  3. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  4. Remove the intake air duct (see step  10 ).
  5. Remove the main under-hood fuse box (see step  11 ).
  6. Remove the battery base (see step  12 ).
  7. Remove the spring clip (A) and the control pin (B), then separate the shift cable end (C) from the selector control lever (D).

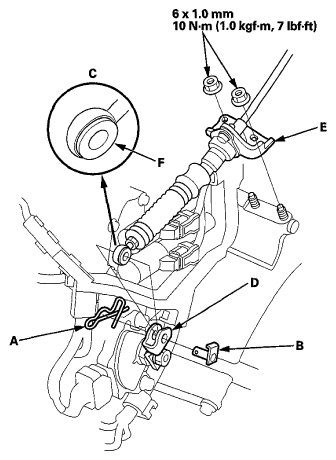

    Fig 1: Spring Clip, Control Pin, Shift Cable End, Selector Control Lever And Bracket With Torque Specifications
    G06966938Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the nuts securing the shift cable bracket (E).
  9. Check the bushing (F) in the shift cable end for proper fit and wear. If the bushing is loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT  ).
  10. Disconnect these connectors:
    • A/T clutch pressure control solenoid valve A connector (A)
    • A/T clutch pressure control solenoid valve B connector (B)
    • Transmission fluid pressure switch C (4th clutch) connector (C)
    • Shift solenoid wire harness connector (D)

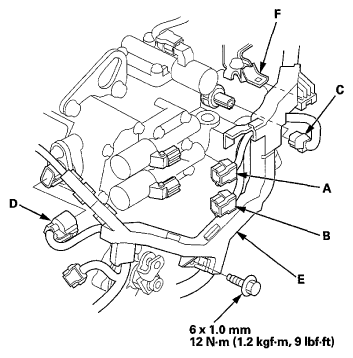

      Fig 2: Identifying Transmission Fluid Pressure Switch C Connector, A/T Clutch Pressure Control Solenoid Valve Connectors And Shift Solenoid Wire Harness Connector
      G06966939Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Remove the bolt securing the harness cover (E), and remove the harness cover from its bracket (F).
  12. Remove A/T clutch pressure control solenoid valves A and B, the 8 x 102.8 mm ATF pipes (C), the 8 x 55.3 mm ATF pipes (D), the gasket (E), and the O-rings (F).
    Fig 3: A/T Clutch Pressure Control Solenoid Valves, ATF Pipes, Gasket And O-Rings With Torque Specifications
    G00522721Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Clean the mounting surfaces and the fluid passage of the solenoid valve cover.
  14. Install a new gasket on the solenoid valve cover, and install the ATF pipes with the filter end in the transmission housing. Install new O-rings over the ATF pipes.
  15. Install new A/T clutch pressure control solenoid valves A and B.
  16. Install the harness cover on its bracket, and secure it with the bolt.
  17. Check the connectors for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connectors securely.
  18. Apply molybdenum grease to the bushing on the shift cable end, then install the shift cable bracket with the nuts.
  19. Attach the shift cable end to the selector control lever, then insert the control pin into the selector control lever hole through the shift cable end, and secure the control pin with the spring clip.
  20. Install the battery base (see step  70 ).
  21. Install the main under-hood fuse box (see step  71 ).
  22. Install the intake air duct (see step  72 ).
  23. Install the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
  24. Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
  25. Install the air intake scoop (see step  77 ).
