Park Pin Switch Test

Remove the center lower console (see CENTER LOWER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the shift lever 12P connector (A).

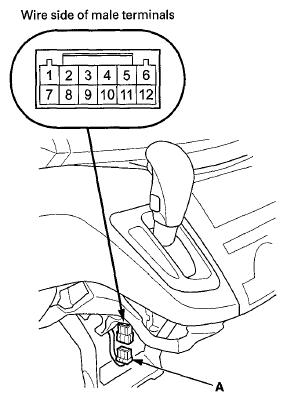

Fig 1: Identifying Shift Lever 12P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the figure below.

Fig 2: Park Pin Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, check the shift cable adjustmet:
- 6-speed A/T model (see SHIFT CABLE ADJUSTMENT ).
- 5-speed A/T model (see SHIFT CABLE ADJUSTMENT ).
If the cable adjustment is OK, replace the park pin switch:
- 6-speed A/T model (see PARK PIN SWITCH REPLACEMENT ).
- 5-speed A/T model (see PARK PIN SWITCH REPLACEMENT ).
