Evaporator Temperature Sensor Replacement

  1. Disconnect the connector (A) from the evaporator temperature sensor (B), then detach the connector clip (C). Remove the self-tapping screw and the evaporator temperature sensor.

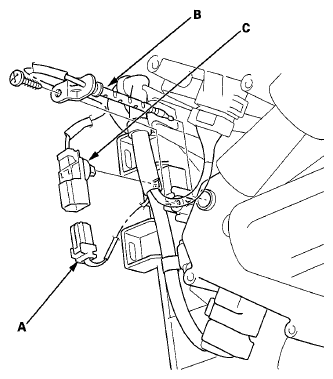

    Fig 1: Identifying Evaporator Temperature Sensor With Connector And Connector Clip
    G06968247Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal.
