Shift Lever Removal

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove these parts:
- Center middle panel (see INSTRUMENT VISOR REMOVAL/INSTALLATION )
- Passenger's middle panel (see PASSENGER'S MIDDLE PANEL REMOVAL/INSTALLATION )
- Multi-purpose hook (see MULTI-PURPOSE HOOK REPLACEMENT )
- Center lower console (see RADIO POCKET REMOVAL/INSTALLATION )
Move the shift lever to R.
Remove the nut securing the shift cable end.

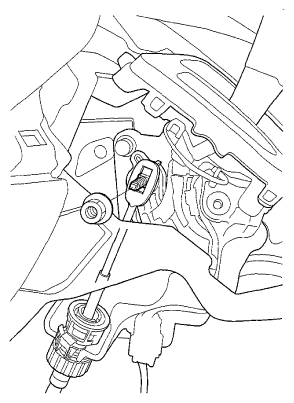

Fig 1: Identifying Shift Cable End With Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Unlock the retainer (A).

Fig 2: Unlocking Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the socket holder retainer (A) counterclockwise (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Fig 3: Rotating Socket Holder Retainer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Slide the socket holder (A) away from the bracket as shown to remove the shift cable (B) from the shift cable bracket (C). Do not remove the shift cable by pulling the shift cable guide (D).

Fig 4: Sliding Socket Holder Away From Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the shift lever connector (A).

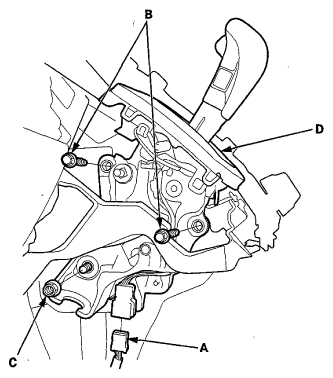

Fig 5: Identifying Shift Lever Connector, Shift Lever Mounting Bolts, Nut And Shift Lever Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shift lever mounting bolts (B) and nut (C), then remove the shift lever assembly (D).
