Engine Mount Control Solenoid Subharness (AA)

ENGINE MOUNT CONTROL SOLENOID SUBHARNESS REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
Engine Coolant temperature (ECT) sensor 2 25 2 Front of engine compartment
Front engine mount actuator 26 2 Front of engine compartment
C201 29 4 Front of engine compartment Right engine compartment wire harness (engine compartment branch)

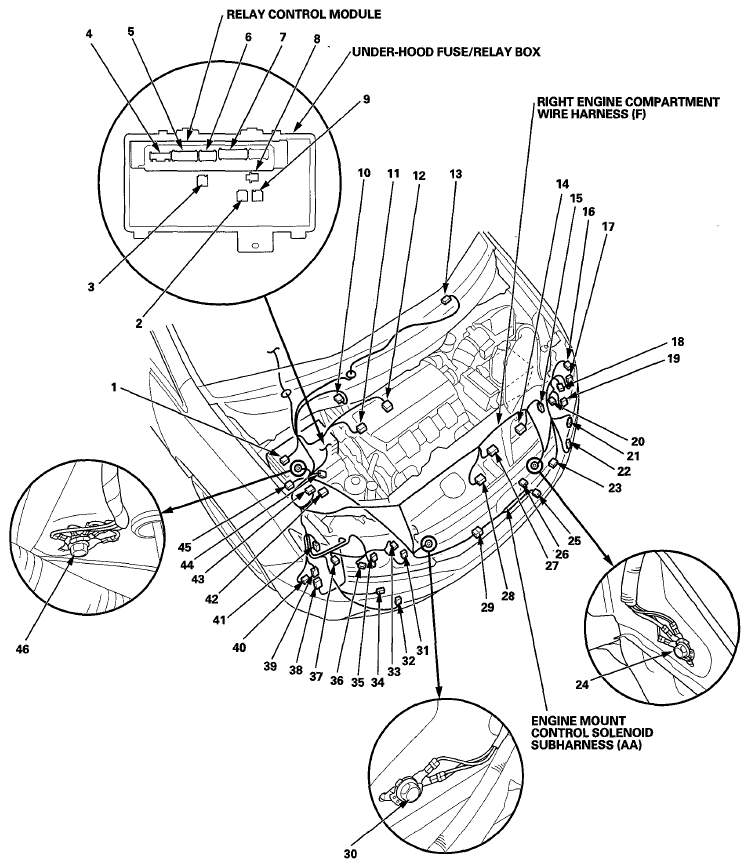

Fig 1: Identifying Right Engine Compartment Wire Harness And Engine Mount Control Solenoid Subharness
G06968498Courtesy of AMERICAN HONDA MOTOR CO., INC.
