Center Lower Console Subharness (AC)

CENTER LOWER CONSOLE SUBHARNESS REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
Auxiliary jack assembly 29 5 Under middle of dash
Front lower accessory power socket 31 2 Under middle of dash   (1)
Cool box control switch 25 5 Under middle of dash   (2)
Front upper accessory power socket 32 2 Under middle of dash
C410 26 18 Under middle of dash Dashboard wire harness
(1) Except LX
(2) With cool box

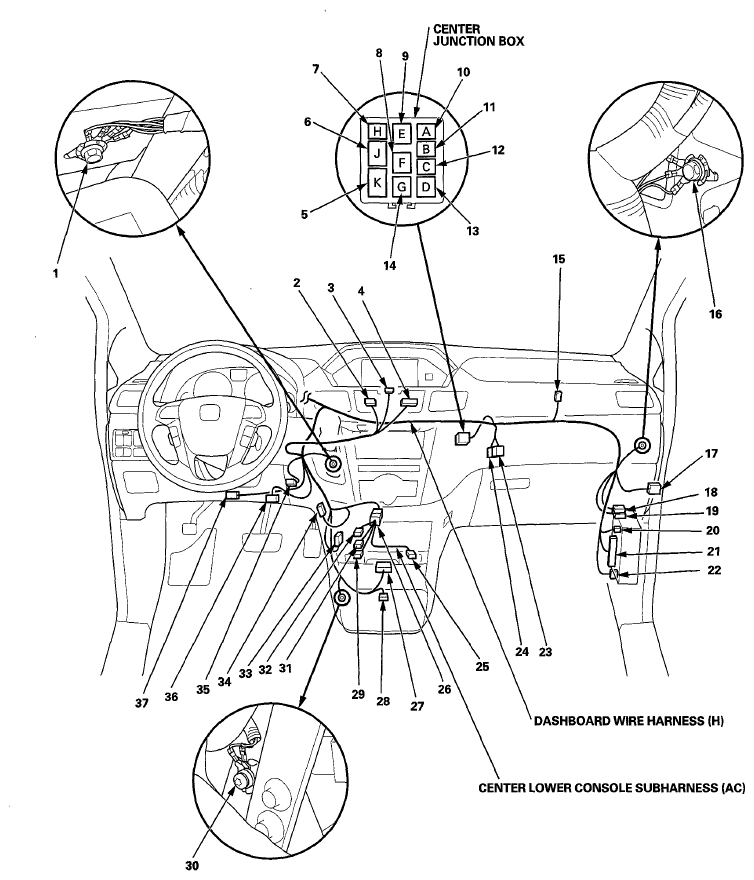

Fig 1: Identifying Dashboard Wire Harness, Center Lower Console Subharness And Driver's Junction Box
G06968506Courtesy of AMERICAN HONDA MOTOR CO., INC.
