Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. From under the dash, remove the driver's heater panel (A) and the passenger's heater panel (B).
   1. Pull out the panel to detach the clips (C, D) and to release the hooks (E).
   2. Release the panel from the stud (F).

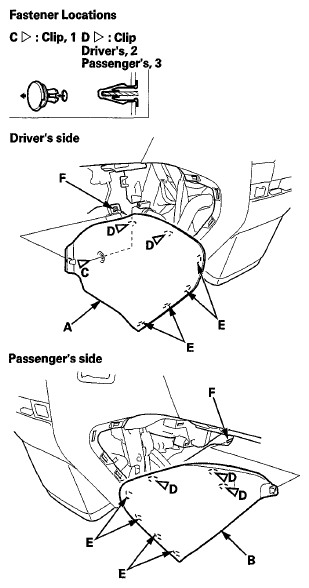

      Fig 1: Identifying Driver's Heater Panel, Stud With Clips And Hooks

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove these items:
   • Center middle panel (see CENTER MIDDLE PANEL REMOVAL/INSTALLATION  )
   • Passenger's middle panel (see PASSENGER'S MIDDLE PANEL REMOVAL/INSTALLATION  )
3. Remove the screws (A, B) securing the center lower console (C).

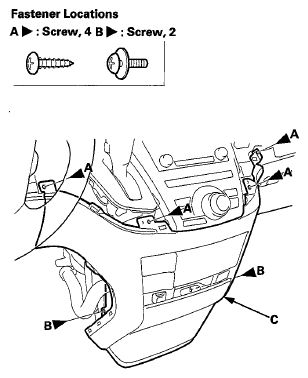

   Fig 2: Identifying Center Lower Console With Mounting Screws

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the center lower console (A).
   1. Pull out the console to detach the clips (B, C).
   2. Disconnect the humidity/in-car temperature sensor connector (D) and the air hose (E).
   3. Disconnect the center lower console subharness connector (F).
   4. Disconnect the cool box hoses (G) on both sides.

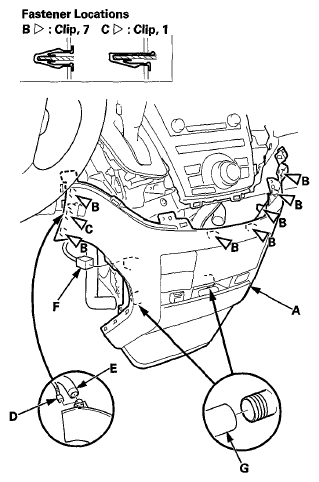

      Fig 3: Identifying Center Lower Console, Cool Box Hoses, Humidity/In-Car Temperature Sensor Connector And Air Hose With Clips

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the console in the reverse order of removal, and note these items:
   • If the clips are damaged or stress-whitened, replace them with new ones.
   • Make sure each connector is plugged in properly.
   • Make sure the air hose and the cool box hoses are connected securely.
   • Push the clips and the hooks into place securely.
