Center Tray Replacement

Remove these items:
- Center lower console
- Multi-purpose hook
Remove the center tray (A) from the center lower console (B).
1. Detach the harness clip (C).
2. Remove the screws.
3. Pull out the tray to detach the clip.

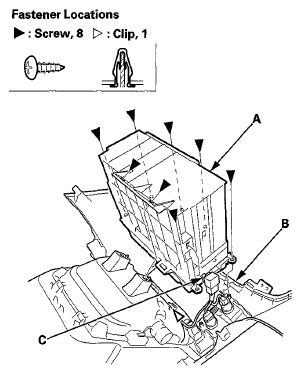

  Fig 1: Identifying Center Tray, Center Lower Console With Harness Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tray in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
