Pilot EX, FWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Restraint System
>>
Component Location Index
Component Location Index

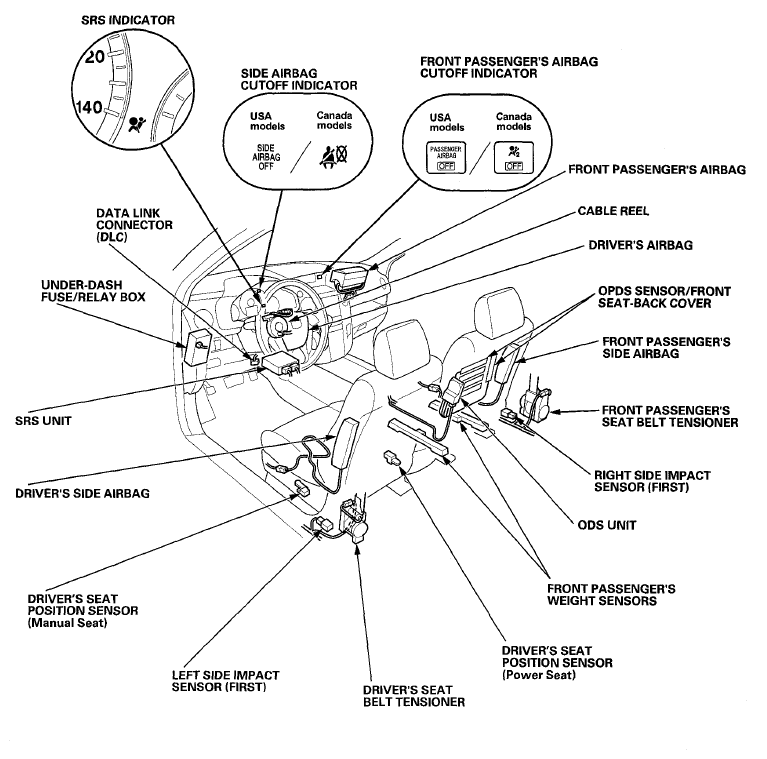

Fig 1: Identifying Supplemental Restraint System Components Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

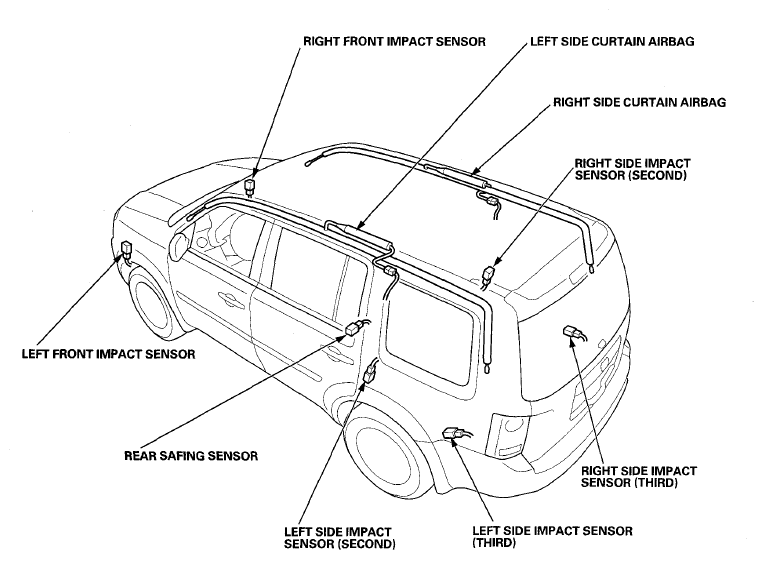

Fig 2: Identifying Supplemental Restraint System Components Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
