km/h, mph Change Switch Test/Replacement

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Remove the five screws and the cover (A).

Fig 1: Identifying Cover With Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

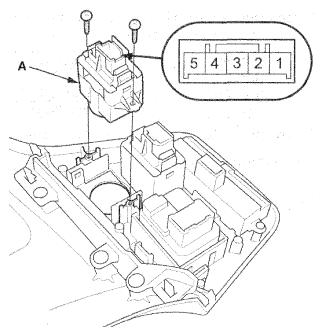

Remove the two screws, then remove the km/h, mph change switch (A).

Fig 2: Identifying Change Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

Fig 3: Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the cover (A), and replace the switch (B) or bulb (C).

Fig 4: Removing Cover, Switch And Bulb
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
