Real-Time Driving Information Display

The real-time driving information display shows the Eco drive profile data from the ECM/PCM with the ambient meter and the Eco score and the Eco drive bar in the Eco guide feedback monitor (see REAL-TIME DRIVING INFORMATION ).

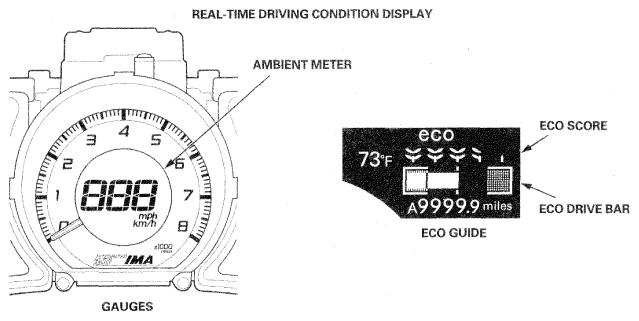

Fig 1: Identifying Real-Time Driving Information Display

Courtesy of AMERICAN HONDA MOTOR CO., INC.
